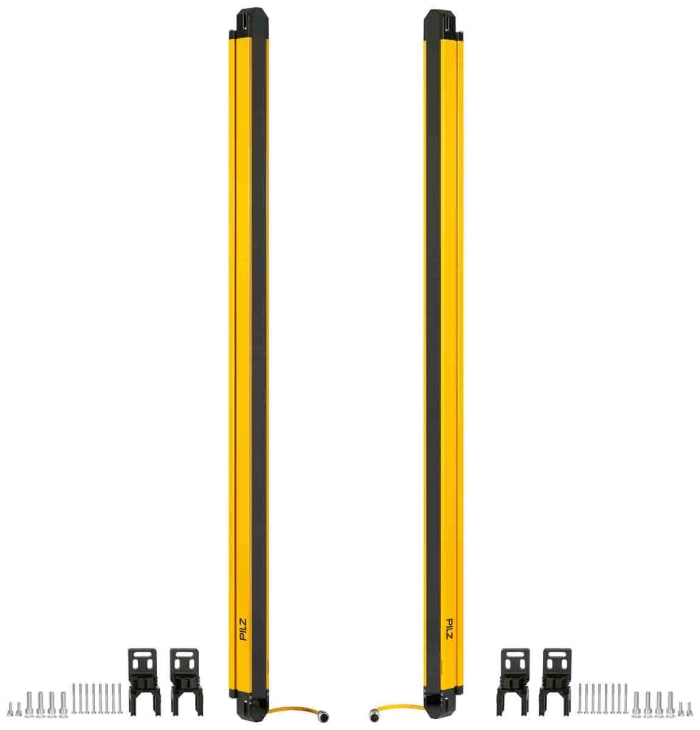

opII4H Light Curtain Receiver, Transmitter, 30mm Resolution
RS Stock No. 191-9845
Brand Pilz
Manufacturers Part No. 632065
Temporarily out of stock
Temporarily out of stock
$ 1,446.65
Each
opII4H Light Curtain Receiver, Transmitter, 30mm Resolution
Live stock
Temporarily out of stock
Specifications
Brand
Pilz
Series
opII4H
Beam Resolution
30mm
Component Type
Receiver, Transmitter
Safety Type
4
PL EN ISO 13849-1
e
Protective Height
900mm
Minimum Scanning Distance
0.2m
Maximum Scanning Distance
18m
Maximum Response Time
15.2 ms
Supply Voltage
24 V dc
Features
Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps
Length
35mm
Width
40mm
Terminal Type
5-Pin M12 Connector
Height
904mm
Application
Industrial
Dimensions
35 x 40 x 904 mm
Country of Origin
CH
