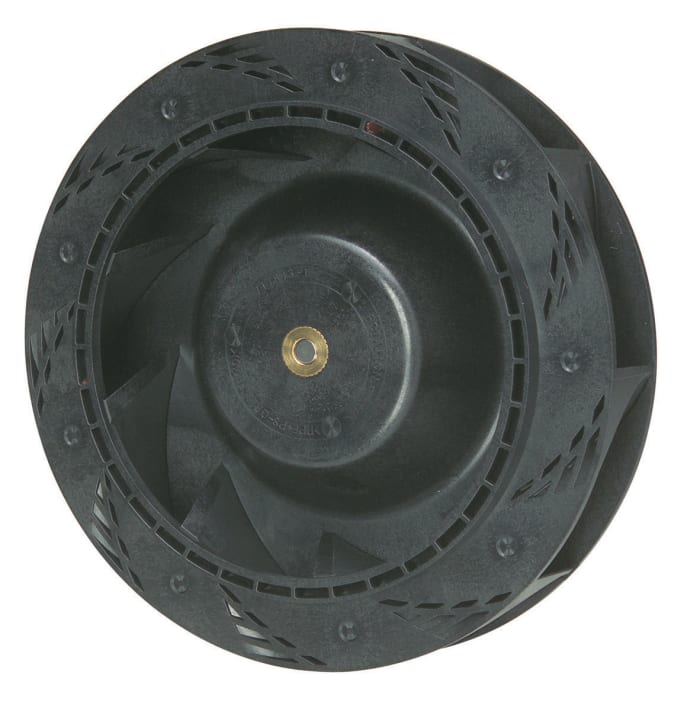

Sanyo Denki Centrifugal Fan 150 x 150 x 35mm, 135cfm, 24 V dc DC (San Ace C150 Series)
Temporarily out of stock
Back order for despatch on 05/25/2021
$ 87.97
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 87.97 |
| 5 - 9 | $ 84.60 |
| 10 - 24 | $ 81.46 |
| 25 - 49 | $ 78.55 |
| 50+ | $ 75.84 |
Live stock
Temporarily out of stock
Back order for despatch on 05/25/2021
Specifications
Brand
Sanyo Denki
Supply Voltage
24 V dc
Blower Type
Centrifugal
AC or DC Operation
DC
Air Flow
135cfm
Series
San Ace C150
Height
150mm
Width
150mm
Depth
35mm
Dimensions
150 x 150 x 35mm
Fan Speed
3800rpm
Noise Level
59dB(A)
Mounting Hole Spacing
64mm
Termination Type
Lead Wire
Maximum Current
620mA
Static Pressure
410Pa
Special Features
50/60 Hz, 500 VAC, for 1 Minute, Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum (Black Coating), Reverse Polarity Protection
Outlet Diameter
0
Inlet Diameter
105mm
Direction of Curve
Forward
Vertical Hole Spacing
64mm
Horizontal Hole Spacing
64mm
Mounting Hole Diameter
4mm
Sensor Output Type
PWM
Country of Origin
PH
