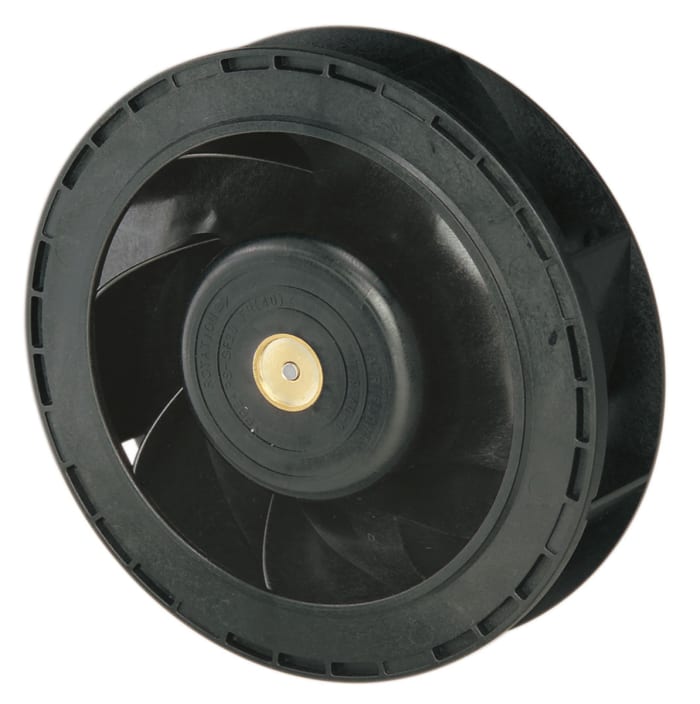

Sanyo Denki Centrifugal Fan 100 x 100 x 25mm, 62.5cfm, 24 V dc DC (San Ace C175 Series)
32 in stock in the UK
$ 87.97
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 87.97 |
| 5 - 9 | $ 84.60 |
| 10 - 24 | $ 81.46 |
| 25 - 49 | $ 78.55 |
| 50+ | $ 75.84 |
Live stock
32 in stock in the UK
Specifications
Brand
Sanyo Denki
Supply Voltage
24 V dc
Blower Type
Centrifugal
AC or DC Operation
DC
Air Flow
62.5cfm
Series
San Ace C175
Height
100mm
Width
100mm
Depth
25mm
Dimensions
100 x 100 x 25mm
Fan Speed
6400rpm
Noise Level
60dB(A)
Mounting Hole Spacing
56mm
Termination Type
Lead Wire
Maximum Current
440mA
Static Pressure
560Pa
Special Features
50/60 Hz, 500 VAC, for 1 Minute, Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum (Black Coating), Reverse Polarity Protection
Sensor Output Type
PWM
Outlet Diameter
0
Inlet Diameter
74mm
Direction of Curve
Forward
Vertical Hole Spacing
56mm
Horizontal Hole Spacing
56mm
Mounting Hole Diameter
4.5mm
Country of Origin
PH
