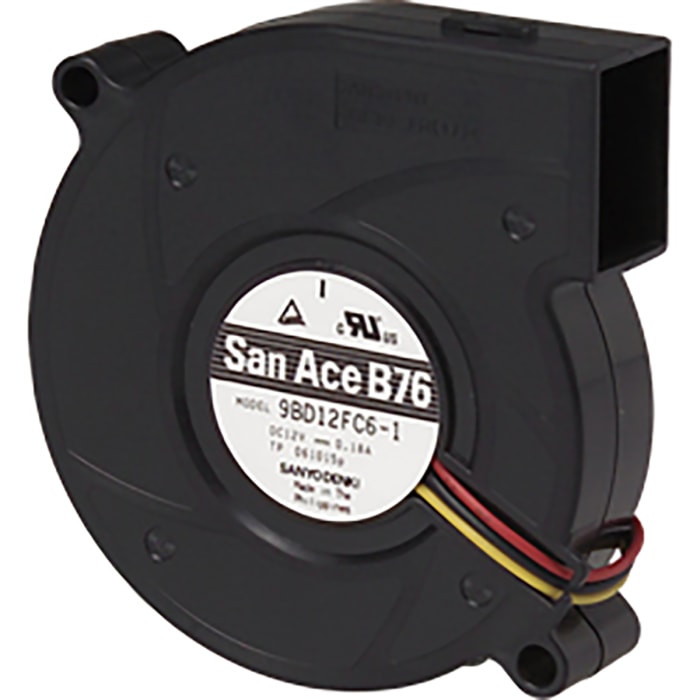

Sanyo Denki Blower 76 x 76 x 20mm, 8.8cfm, 24 V dc DC (San Ace B76 Series)
Temporarily out of stock
$ 22.49
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 22.49 |
| 5 - 9 | $ 21.62 |
| 10 - 24 | $ 20.82 |
| 25 - 49 | $ 20.09 |
| 50+ | $ 19.39 |
Live stock
Temporarily out of stock
Specifications
Brand
Sanyo Denki
Supply Voltage
24 V dc
Blower Type
Blower
AC or DC Operation
DC
Air Flow
8.8cfm
Series
San Ace B76
Height
76mm
Width
76mm
Depth
20mm
Dimensions
76 x 76 x 20mm
Fan Speed
3900rpm
Noise Level
39dB(A)
Mounting Hole Spacing
57 x 57mm
Static Pressure
300Pa
Special Features
50/60 Hz, 500 VAC, for 1 Minute, Frame:Plastic (Flammability: UL 94V-0), Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Reverse Polarity Protection
Termination Type
Lead Wire
Inlet Diameter
42mm
Maximum Current
100mA
Direction of Curve
Backward
Vertical Hole Spacing
57mm
Horizontal Hole Spacing
57mm
Mounting Hole Diameter
4.5mm
Country of Origin
PH
