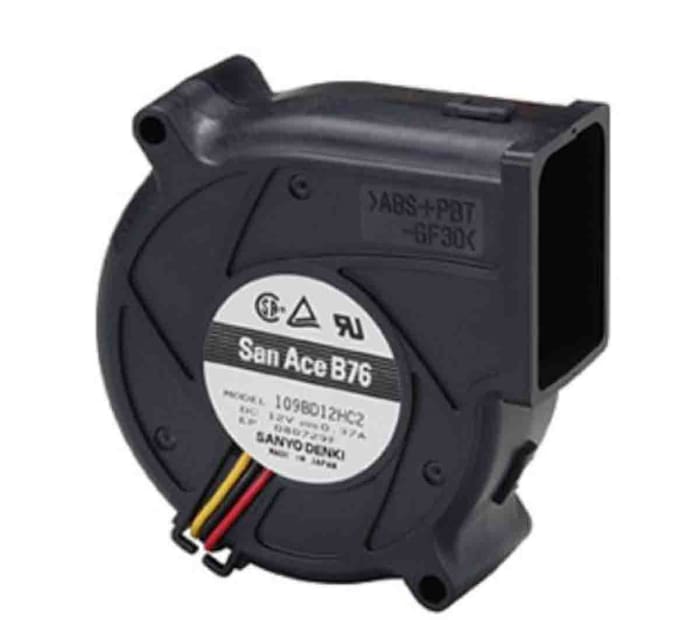

Sanyo Denki Blower 76'30mm, 12.7cfm, 24 V dc (San Ace B76 9BD Series)
8 in stock in the UK
$ 41.99
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 41.99 |
| 5 - 9 | $ 40.38 |
| 10 - 24 | $ 38.88 |
| 25 - 49 | $ 37.49 |
| 50+ | $ 36.20 |
Live stock
8 in stock in the UK
Specifications
Brand
Sanyo Denki
Supply Voltage
24 V
Blower Type
Blower
AC or DC Operation
DC
Air Flow
12.7cfm
Series
San Ace B76 9BD
Width
76 Dia.mm
Depth
30mm
Dimensions
76<font face="symbol">´</font>30mm
Noise Level
41.5dB(A)
Bearing Type
Ball
Mounting Hole Spacing
45.7 x 67.1mm
Vertical Hole Spacing
67.1mm
Horizontal Hole Spacing
45.7mm
Mounting Hole Diameter
4.5mm
Termination Type
Lead Wire
Maximum Current
170mA
Static Pressure
151.9Pa
Special Features
500 VAC, 50/60 Hz, for 1 Minute, Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1), Locked Rotor Burnout Protection, Reverse Polarity Protection
Sensor Output Type
Pulse
Direction of Curve
Forward
Country of Origin
JP
