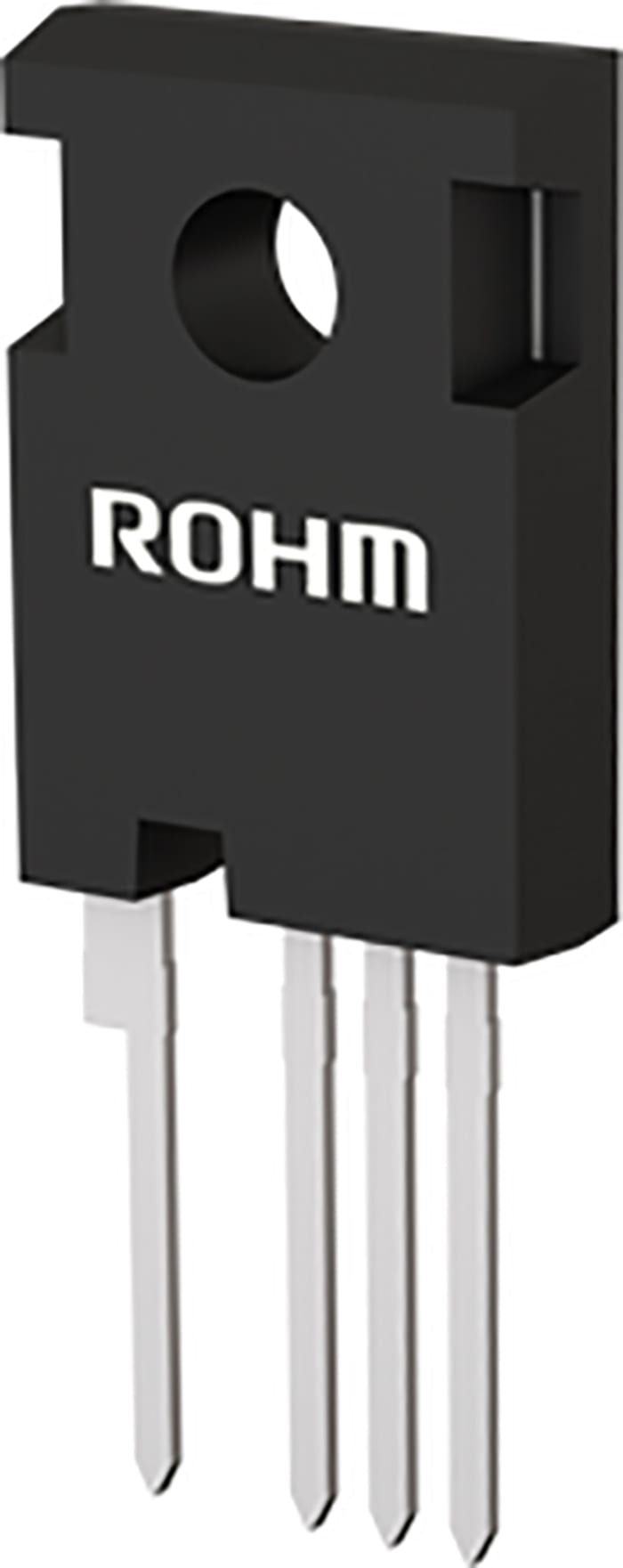

SiC N-Channel MOSFET, 30 A, 650 V, 4-Pin TO-247 ROHM SCT3080ARC14
RS Stock No. 191-8792
Brand ROHM
Manufacturers Part No. SCT3080ARC14
Temporarily out of stock
Temporarily out of stock
$ 16.42
Each
SiC N-Channel MOSFET, 30 A, 650 V, 4-Pin TO-247 ROHM SCT3080ARC14
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 16.42 |
| 10+ | $ 14.11 |
Live stock
Temporarily out of stock
Specifications
Brand
ROHM
Channel Type
N
Maximum Continuous Drain Current
30 A
Maximum Drain Source Voltage
650 V
Package Type
TO-247
Mounting Type
Through Hole
Pin Count
4
Maximum Drain Source Resistance
104 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5.6V
Minimum Gate Threshold Voltage
2.7V
Maximum Power Dissipation
134 W
Transistor Configuration
Single
Maximum Gate Source Voltage
22 V
Number of Elements per Chip
1
Maximum Operating Temperature
+175 °C
Transistor Material
SiC
Typical Gate Charge @ Vgs
48 nC @ 18V
