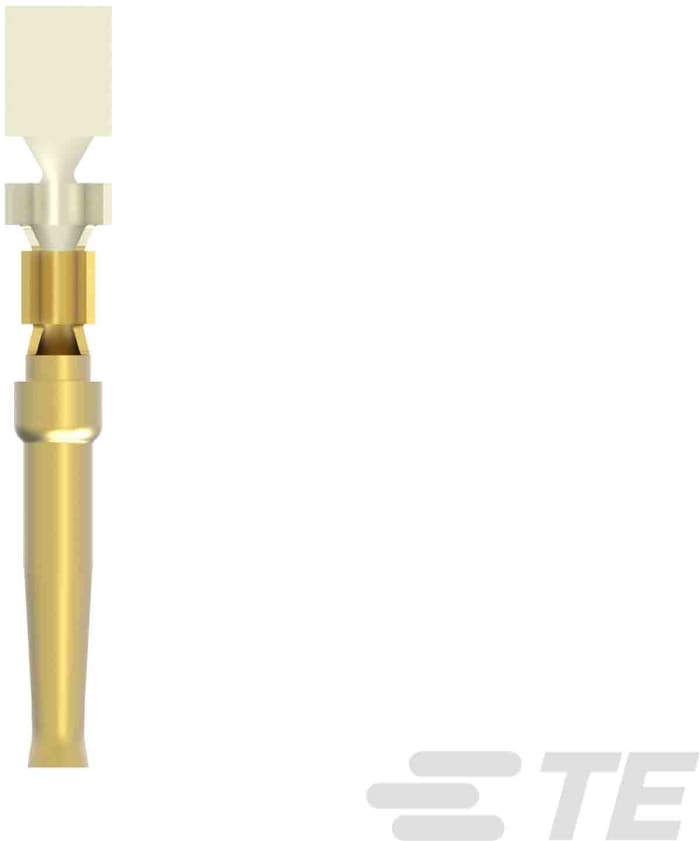

TE Connectivity, AMPLIMITE HD-20 size 20 Female Crimp D-sub Connector Contact, Gold Socket, 24 → 20 AWG
Temporarily out of stock
Back order for despatch on 05/06/2021
$ 0.082
Each (On a Reel of 10000)
Live stock
Temporarily out of stock
Back order for despatch on 05/06/2021
Product details
TE Connectivity HDP-20 Crimp Contacts
The TE Connectivity HDP-20 series of connector contacts are designed for the AMPLIMITE D-Sub connector system. This range of size 20 DF contacts is available in both pin and socket options.
• Contact size: 20DF
• Pin diameter: 0.04 (1.02)
• Gold plated for quality
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Brand
TE Connectivity
Gender
Female
Contact Material
Phosphor Bronze
Contact Plating
Gold
Wire Size
24 → 20 AWG
Minimum Wire Size mm²
0.2mm²
Maximum Wire Size mm²
0.6mm²
Contact Type
Socket
Minimum Wire Size AWG
24AWG
Series
AMPLIMITE HD-20
Contact Size
20
Maximum Wire Size AWG
20AWG
Current Rating
2A
Termination Method
Crimp
Length
14.1mm
