TE Connectivity, AMP-IN Male PCB Connector Contact 22AWG 925819-3
64000 in stock in the UK
$ 0.052
Each (In a Bag of 8000)
Live stock
64000 in stock in the UK
Product details

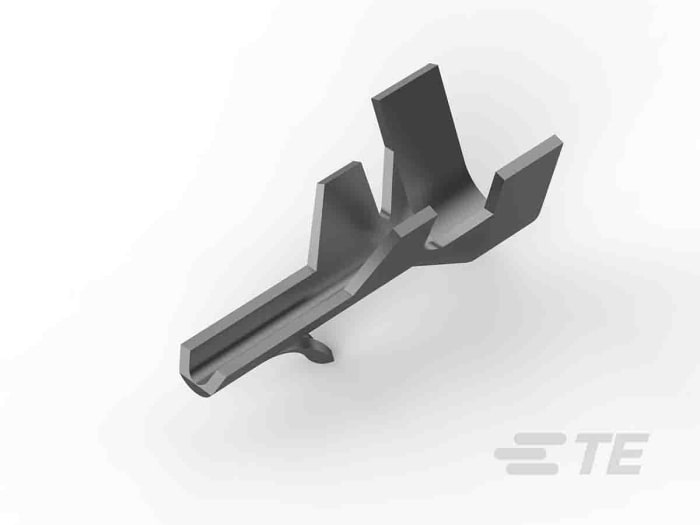

TE Connectivity Miniature AMP-IN Terminals
These Miniature AMP-IN terminals are designed as mechanical holding devices to enhance the soldering of hookup wires to the PCB. This design eliminates the need for costly manual wire preparation. The wire is accurately positioned and held in place by the AMP-IN terminals to assure proper solder flow and reliable solder joints. A terminal locking lance holds the wire securely in the PCB and insulation support provides strain relief and protects the solder joint. With a low profile height above PCB these AMP-IN terminals offer space saving and design flexibility
TE Connectivity Discrete PCB Connections
Specifications
Brand
TE Connectivity
Gender
Male
Series
AMP-IN
Minimum Wire Size mm²
0.12mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.12mm²
Minimum Wire Size AWG
26AWG
Contact Plating
Nickel
Maximum Wire Size AWG
22AWG
Contact Material
Brass
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
