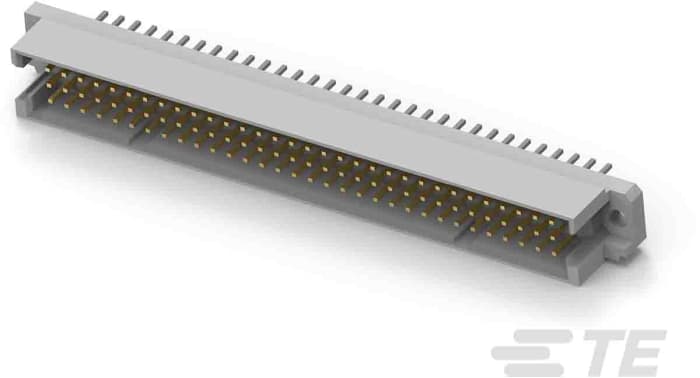

TE Connectivity, Eurocard Type R 96 Way 2.54mm Pitch, Type R, 3 Row, Vertical DIN 41612 Connector, Plug
Temporarily out of stock
Back order for despatch on 06/23/2021
$ 3.683
Each (In a Box of 30)
Buy in bulk
| quantity | Unit price |
|---|---|
| 30 - 120 | $ 3.683 |
| 150 - 270 | $ 3.410 |
| 300 - 570 | $ 3.231 |
| 600+ | $ 3.069 |
Live stock
Temporarily out of stock
Back order for despatch on 06/23/2021
Product details
TE Connectivity DIN 41612 Eurocard Connectors
Eurocard plug and receptacle connectors which meet DIN 41612 and IEC 60603-2 with an internationally accepted quality design for high Signal Integrity and electrical performance. These Eurocard DIN 41612 connectors are available in a range of types B, C, D, F, M, Q and R and with selective contact loading. The housings of these Eurocard connectors are made from a flame retardant material and have polarizing features to prevent mis-mating. Versions are available with boardlocks for a secure retention to the PCB. The solder posts of these Eurocard connectors come in a range of lengths and ACTION PIN and eye of needle contact tails
DIN41612 - TE Connectivity
Specifications
Brand
TE Connectivity
Number Of Contacts
96
Gender
Male
Number Of Rows
3
Body Orientation
Vertical
Termination Method
Solder
Row Loading
a, b, c
Type
R
Pitch
2.54mm
Contact Plating
Gold, Tin
Mounting Type
Through Hole
Current Rating
1.5A
Contact Material
Brass
Housing Material
Glass Filled Polyester
Minimum Operating Temperature
-55°C
Series
Eurocard Type R
Maximum Operating Temperature
+105°C
