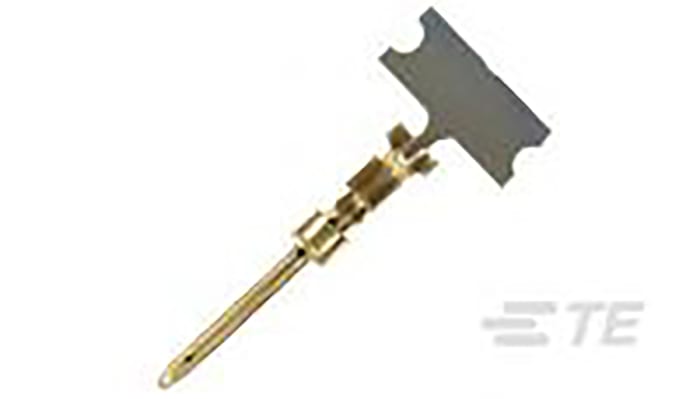

TE Connectivity, AMPLIMITE size 20 Male Crimp D-sub Connector Contact, Gold Pin, 24 → 20 AWG
RS Stock No. 191-8456
Brand TE Connectivity
Manufacturers Part No. 5-66506-3
9500 in stock in the UK
9500 in stock in the UK
$ 0.254
Each (On a Reel of 500)
TE Connectivity, AMPLIMITE size 20 Male Crimp D-sub Connector Contact, Gold Pin, 24 → 20 AWG
Buy in bulk
| quantity | Unit price |
|---|---|
| 500 - 2000 | $ 0.254 |
| 2500 - 4500 | $ 0.246 |
| 5000+ | $ 0.238 |
Live stock
9500 in stock in the UK
Product details
TE Connectivity HDP-20 Crimp Contacts
The TE Connectivity HDP-20 series of connector contacts are designed for the AMPLIMITE D-Sub connector system. This range of size 20 DF contacts is available in both pin and socket options.
• Contact size: 20DF
• Pin diameter: 0.04 (1.02)
• Gold plated for quality
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Brand
TE Connectivity
Gender
Male
Contact Material
Brass
Contact Plating
Gold
Minimum Wire Size mm²
0.2mm²
Wire Size
24 → 20 AWG
Contact Type
Pin
Maximum Wire Size mm²
0.6mm²
Minimum Wire Size AWG
24AWG
Series
Amplimite
Maximum Wire Size AWG
20AWG
Contact Size
20
Current Rating
2A
Termination Method
Crimp
Length
14.61mm
