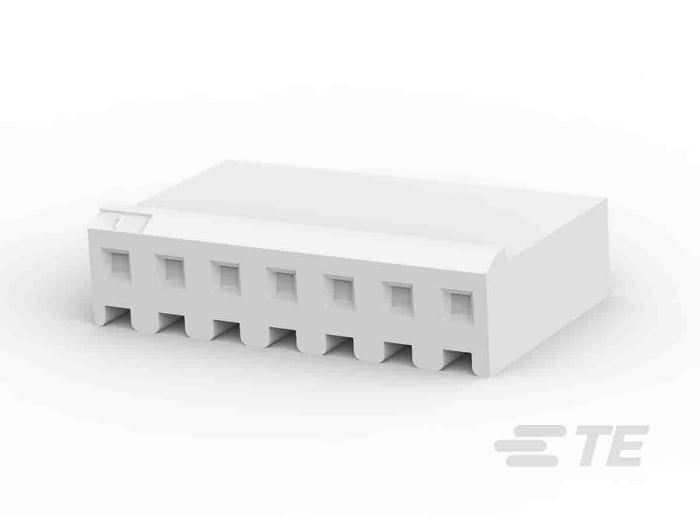

TE Connectivity, SL-156 Female PCB Connector Housing, 3.96mm Pitch, 7 Way, 1 Row
Temporarily out of stock
Back order for despatch on 08/18/2021
$ 0.216
Each (In a Box of 2000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 2000 - 2000 | $ 0.216 |
| 4000 - 6000 | $ 0.209 |
| 8000+ | $ 0.204 |
Live stock
Temporarily out of stock
Back order for despatch on 08/18/2021
Product details
TE Connectivity 3.96mm SL-156 Series Housings
SL-156 series receptacle style wire to board housings made from UL94V-0 rated white nylon designed to mate with 1.14mm square or round post headers or staked posts on .156 centres (see MTA-156 flat, polarized and friction lock headers and staked posts). These SL-156 series housings are end to end stackable, accept a wire size range of 18 to 24 AWG and are available with locking ramp mating retention and polarizing tabs.
Part numbers X-640250-X have a locking ramp
Part numbers X-770849-X have both locking ramp and polarizing tabs
For crimp contacts for these 3.96mm SL-156 series housings see stock number 680-1792 typically.
3.96mm TE Connectivity SL Range
Specifications
Brand
TE Connectivity
Number Of Contacts
7
Number Of Rows
1
Pitch
3.96mm
Gender
Female
Mounting Type
Cable Mount
Series
SL-156
For Use With
Wire-to-Board Connector
Body Orientation
Straight
Length
27.69mm
Width
16.76mm
Housing Material
Nylon
