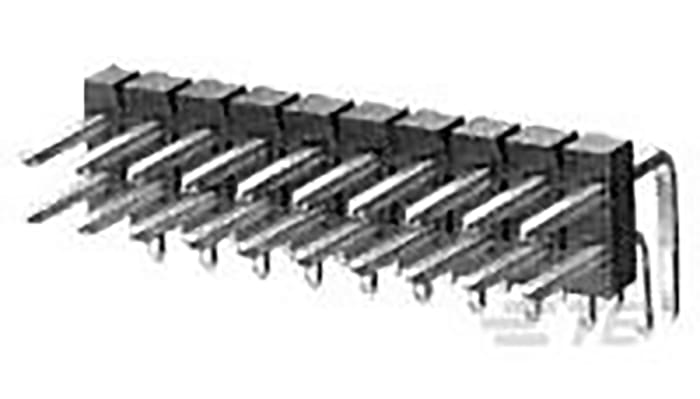

TE Connectivity, AMPMODU, 26 Way, 2 Row, Right Angle Pin Header
Temporarily out of stock
Back order for despatch on 08/25/2021
$ 2.080
Each (In a Box of 150)
Buy in bulk
| quantity | Unit price |
|---|---|
| 150 - 450 | $ 2.080 |
| 600+ | $ 1.849 |
Live stock
Temporarily out of stock
Back order for despatch on 08/25/2021
Product details
TE Connectivity AMPMODU Mod II 2.54 mm Double Row Unshrouded Breakaway Pin Headers
AMPMODU Mod II unshrouded double row breakaway PCB pin headers with a 2.54mm centreline. These versatile AMPMODU Mod II breakaway PCB headers can be broken into the size required. All the solder posts can be installed at one time saving time and labour costs. These 2.54mm AMPMODU Mod II pin headers are available with a vertical or right angle mounting orientation. Surface mount versions are also available
Part numbers X-146269-X have PCB retention tails
2.54mm TE Connectivity AMPMODU Mod II Interconnect System
Specifications
Brand
TE Connectivity
Series
AMPMODU
Pitch
2.54mm
Number Of Contacts
26
Number Of Rows
2
Body Orientation
Right Angle
Shrouded/Unshrouded
Unshrouded
Mounting Type
Through Hole
Termination Method
Solder
Contact Plating
Gold
Contact Material
Phosphor Bronze
Current Rating
5.0A
