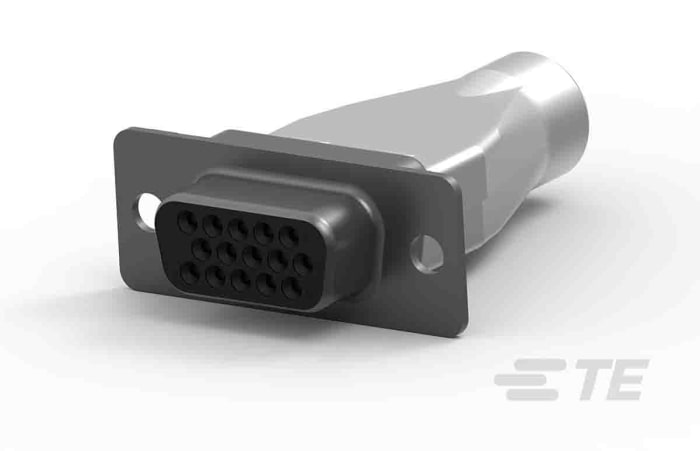

TE Connectivity Amplimite HDP-22 15 Way Cable Mount D-sub Connector

AMPLIMITE D-Sub Connector, HDP-22 Series, Basic Shielding Hardware Kits

AMPLIMITE HDP-22 basic shielding hardware kits consisting of a connector with a tin plated steel shell and black 94V-0 thermoplastic insert, and an inner and outer tin plated steel shield. The size 22 DF crimp snap-in contacts for these AMPLIMITE HDP-22 basic shielding hardware kits must be ordered separately, see stock numbers 680-9692 and 718-1207 typically. Ferrules must also be ordered separately see stock numbers 301-8199 and 301-8212 typically. These AMPLIMITE HDP-22 shielded d-sub connector kits have 3.05mm standard mounting holes.
For suitable female screwlocks see stock numbers 717-4543, 680-9288 and 450-9309 typically
For suitable male screw retainers see stock numbers 450-9208 and 717-4498 typically
For locking post assembly see stock number 450-9365
For two piece spring latch see stock number 450-9321
For latching blocks with threaded hole see stock number 450-9371 typically
For latching blocks with slot recess and through hole see 680-9392

TE Connectivity AMPLIMITE D-Subminiature Connectors
