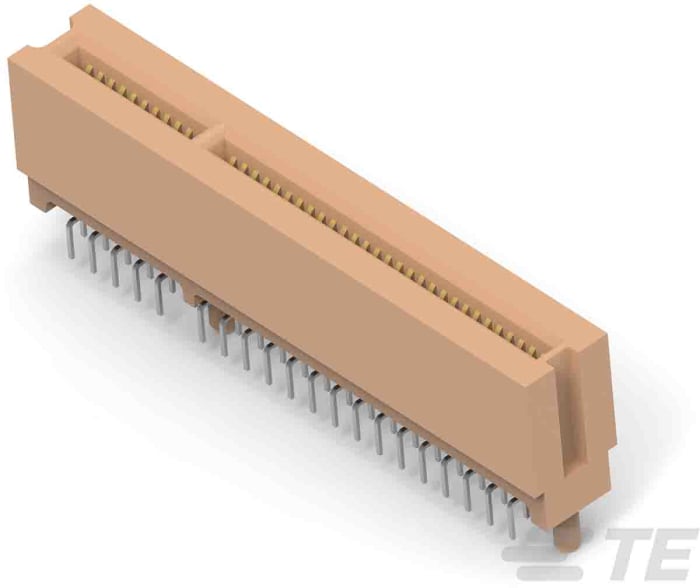

TE Connectivity, 109 FemalePCBEdge Connector, Through Hole Mount, 80 Way, 2 Row, 1.27mm Pitch
140 in stock in the UK
$ 2.967
Each (In a Box of 35)
Buy in bulk
| quantity | Unit price |
|---|---|
| 35 - 140 | $ 2.967 |
| 175 - 315 | $ 2.626 |
| 350 - 490 | $ 2.369 |
| 525 - 665 | $ 2.305 |
| 700+ | $ 2.246 |
Live stock
140 in stock in the UK
Product details
TE Connectivity .050 Series PCI and Standard Edge Connectors
.050 Series PCI and standard card edge connectors with a 1.27mm pitch and 64 bit Bus width. These .050 Series PCI and standard card edge connectors have 92 Dual position contacts with the following board retention features:
Stock number 718-8340 is a PCI card edge connector and has 3 x brass hold downs and a 64 bit Bus width
Stock numbers 782-6883 and 864-3472 are PCI card edge connectors which have 3 x plastic pylons and a 64 bit Bus width
Stock number 718-8255 is a dual row standard card edge connector with 2 plastic pylons, keying and a PS/2 Bus type
Edge Connectors - TE
Specifications
Brand
TE Connectivity
Body Orientation
Straight
Gender
Female
Number Of Contacts
80
Number Of Rows
2
Pitch
1.27mm
Mounting Type
Through Hole
Termination Method
Solder
Contact Plating
Gold
Contact Material
Phosphor Bronze
Voltage Rating
203 V ac
Housing Material
Thermoplastic
Series
109
Width
8.89mm
Depth
13.97mm
Minimum Operating Temperature
-55°C
Card Type
Card Edge
Maximum Operating Temperature
+85°C
Length
59.44mm
Series Number
5650090
