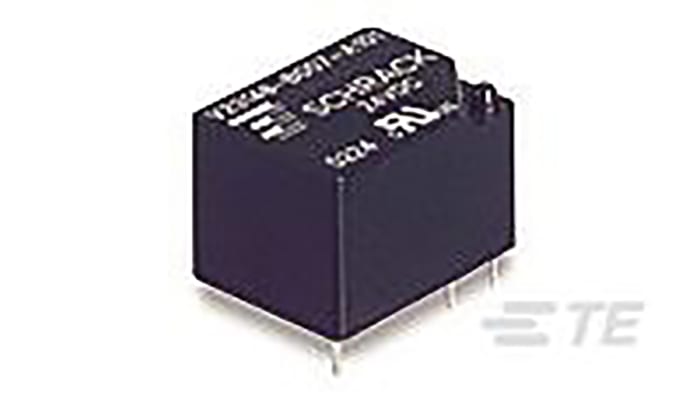

TE Connectivity SPDT PCB Mount Latching Relay - 7 A, 12V dc For Use In Battery Powered Equipment, Heating Control,

Brand

TE Connectivity

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

7 A

Maximum Switching Voltage AC

400V

Series

U/UB

Length

21.2mm

Depth

16.2mm

Height

15.8mm

Dimensions

21.2 x 16.2 x 15.8mm

Terminal Type

PCB Pin

Application

Battery Powered Equipment, Heating Control, Installation

Isolation Coil To Contact

2000Vrms

Life

20 x 10^6 (Mechanical) cycles

Maximum Switching Power AC

450 mW

Coil Resistance

320 Ω

Operating Temperature Range

-25 → +70°C

Features

1 Form C (CO), 1 Pole 7A, Bistable, Bistable and DC Version, Wash Tight Version

Number of Poles

1

Minimum Operating Temperature

-25°C

Coil Power

450mW

Maximum Operating Temperature

+70°C
