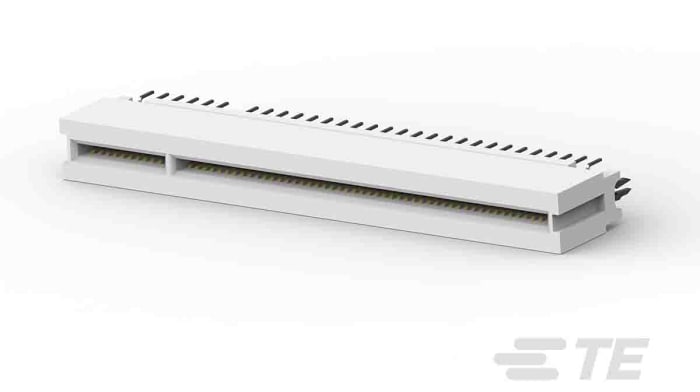

TE Connectivity, 109 FemalePCBEdge Connector, Through Hole Mount, 120 Way, 2 Row, 1.27mm Pitch
350 in stock in the UK
$ 3.268
Each (In a Box of 35)
Buy in bulk
| quantity | Unit price |
|---|---|
| 35 - 140 | $ 3.268 |
| 175 - 315 | $ 3.137 |
| 350 - 490 | $ 3.016 |
| 525+ | $ 2.904 |
Live stock
350 in stock in the UK
Product details
TE Connectivity 1.27mm PCI Card Edge Connectors
PCI PCB mount card edge connectors with a 1.27mm pitch. These PCI PCB mount card edge connectors are available with a 32 bit or 64 bit (stock numbers 745-5703 and 864-3829) bus width and are made from white thermoplastic with hold down pylons to aid PCB retention (stock numbers 745-5703 and 864-3829 have 3 pylons, all the others have 2).
Memory Card Connectors
Specifications
Brand
TE Connectivity
Body Orientation
Straight
Gender
Female
Number Of Contacts
120
Number Of Rows
2
Pitch
1.27mm
Mounting Type
Through Hole
Termination Method
Solder
Contact Plating
Gold
Contact Material
Phosphor Bronze
Voltage Rating
203 V ac
Housing Material
Thermoplastic
Series
109
Width
8.89mm
Depth
13.97mm
Minimum Operating Temperature
-55°C
Card Type
Card Edge
Maximum Operating Temperature
+85°C
Length
84.84mm
Series Number
5145167
