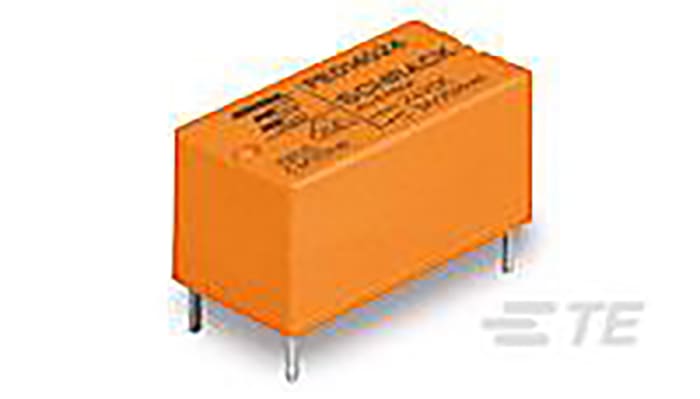

TE Connectivity SPDT PCB Mount Latching Relay - 5 A, 2.2V dc

Brand

TE Connectivity

Coil Voltage

2.2V dc

Contact Configuration

SPDT

Switching Current

5 A

Mounting Type

PCB Mount

Maximum Switching Voltage AC

400V

Series

PE

Length

20mm

Depth

10mm

Height

10mm

Dimensions

20 x 10 x 10mm

Terminal Type

PCB Pin

Features

1 Form C (CO), 1 Pole 5 A, Plastic Materials According to IEC 60335-1 (Domestic Appliances), Polarized Bistable Version, Sensitive Version with 200 mW Coil

Contact Material

Silver Alloy

Number of Poles

1

Minimum Operating Temperature

-40°C

Coil Power

220mW

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

4000Vrms

Life

5 x 10^6 (Mechanical) cycles

Maximum Switching Power AC

220 mW

Electrical Life

100 x 10^3 cycles

Coil Resistance

22 Ω

Operating Temperature Range

-40 → +85°C
