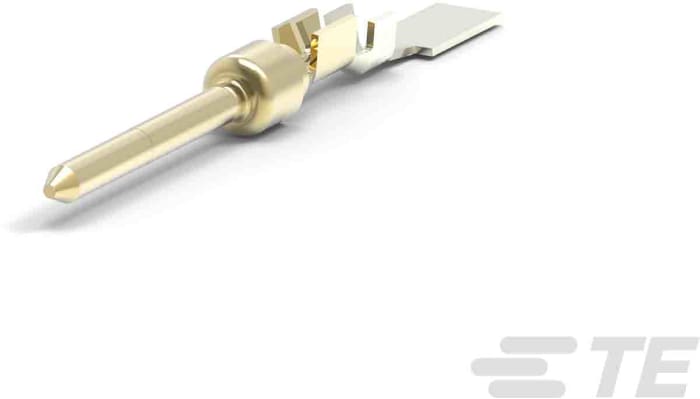

TE Connectivity, AMPLIMITE size 20 Male Crimp D-sub Connector Contact, Gold Pin, 28 → 24 AWG
Temporarily out of stock
Back order for despatch on 07/28/2021
$ 0.107
Each (On a Reel of 10000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10000 - 10000 | $ 0.107 |
| 20000+ | $ 0.099 |
Live stock
Temporarily out of stock
Back order for despatch on 07/28/2021
Product details
TE Connectivity HDP-20 Crimp Contacts
The TE Connectivity HDP-20 series of connector contacts are designed for the AMPLIMITE D-Sub connector system. This range of size 20 DF contacts is available in both pin and socket options.
• Contact size: 20DF
• Pin diameter: 0.04 (1.02)
• Gold plated for quality
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Brand
TE Connectivity
Gender
Male
Contact Material
Brass
Contact Plating
Gold
Minimum Wire Size mm²
0.08mm²
Wire Size
28 → 24 AWG
Contact Type
Pin
Maximum Wire Size mm²
0.2mm²
Minimum Wire Size AWG
28AWG
Series
Amplimite
Maximum Wire Size AWG
24AWG
Contact Size
20
Current Rating
1.2A
Termination Method
Crimp
Length
14.61mm
