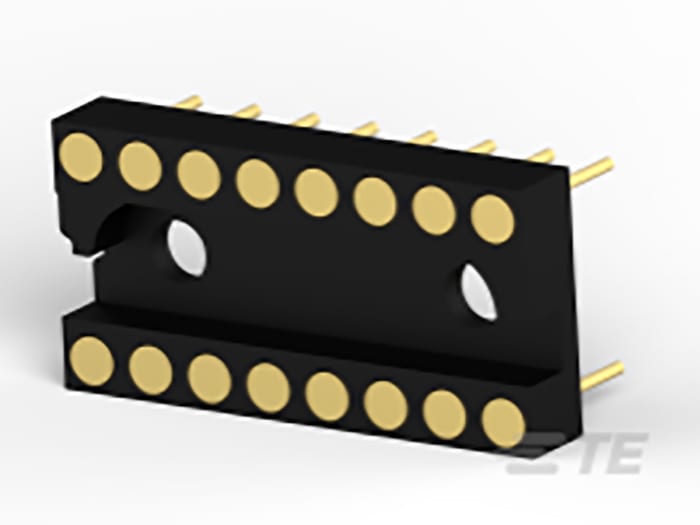

TE Connectivity, 1437536 2.54mm Pitch Vertical 16 Way, Through Hole Standard Pin Closed Frame IC Dip Socket, 3A
RS Stock No. 191-7877
Brand TE Connectivity
Manufacturers Part No. 1437536-2
1140 in stock in the UK
1140 in stock in the UK
$ 5.215
Each (In a Tube of 30)
TE Connectivity, 1437536 2.54mm Pitch Vertical 16 Way, Through Hole Standard Pin Closed Frame IC Dip Socket, 3A
Buy in bulk
| quantity | Unit price |
|---|---|
| 30 - 60 | $ 5.215 |
| 90 - 270 | $ 4.550 |
| 300+ | $ 4.172 |
Live stock
1140 in stock in the UK
Specifications
Brand
TE Connectivity
Number Of Contacts
16
Mounting Type
Through Hole
Pin Type
Standard
Pitch
2.54mm
Row Width
7.62mm
Frame Type
Closed Frame
Termination Method
Solder
Contact Plating
Gold
Current Rating
3A
Orientation
Vertical
Length
20.32mm
Width
10.16mm
Depth
4.57mm
Dimensions
20.32 x 10.16 x 4.57mm
Minimum Operating Temperature
-55°C
Voltage Rating
1 kV ac
Housing Material
Polyester
Contact Material
Beryllium Copper
Series
1437536
Maximum Operating Temperature
+125°C
Country of Origin
CH
