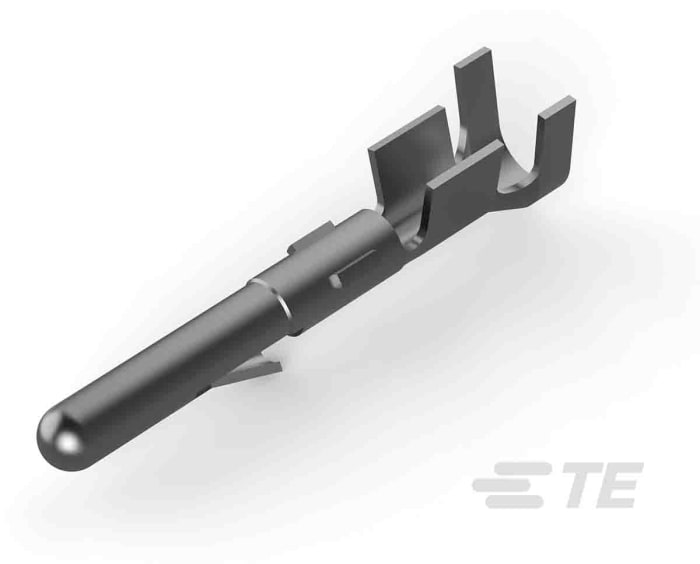

TE Connectivity, Commercial MATE-N-LOK Male PCB Connector Contact 18AWG 60618-4
Temporarily out of stock
$ 0.250
Each (In a Bag of 1000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000 - 2000 | $ 0.250 |
| 3000 - 4000 | $ 0.238 |
| 5000 - 6000 | $ 0.227 |
| 7000 - 9000 | $ 0.216 |
| 10000+ | $ 0.207 |
Live stock
Temporarily out of stock
Product details
TE Connectivity Commercial MATE-N-LOK Pin and Socket Contacts
Commercial MATE-N-LOK pin and socket contacts for use in Commercial MATE-N-LOK connector housings. The 'clean' design of these contacts ensures there are no sharp projections to impede insertion or damage the housings. These Commercial MATE-N-LOK contacts are suitable for wire size ranges from 30 AWG to 14 AWG and are available with gold or tin plating.
TE Connectivity Commercial MATE-N-LOK Range
Specifications
Brand
TE Connectivity
Gender
Male
For Use With
Commercial MATE-N-LOK Connector Housing
Series
Commercial MATE-N-LOK
Minimum Wire Size mm²
0.2mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.82mm²
Contact Plating
Tin
Minimum Wire Size AWG
24AWG
Contact Material
Phosphor Bronze
Maximum Wire Size AWG
18AWG
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Technical Document
Statement of Conformity
