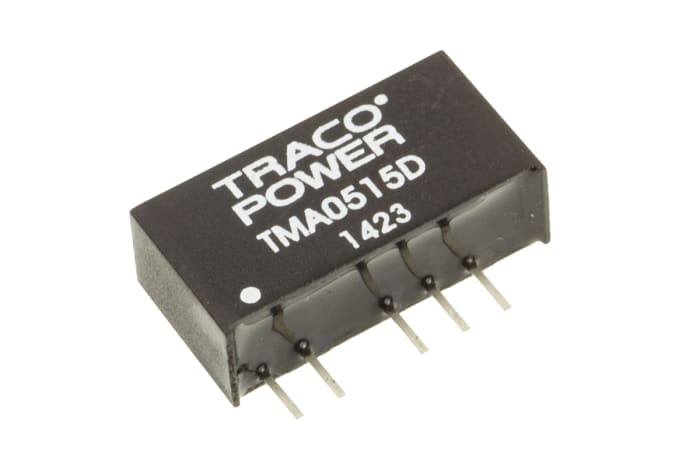

TRACOPOWER TMA 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out ±15V dc
268 in stock in the UK
$ 5.12
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 5.12 |
| 5 - 9 | $ 4.97 |
| 10 - 24 | $ 4.81 |
| 25 - 49 | $ 4.60 |
| 50+ | $ 4.40 |
Production pack (Tube)
Live stock
268 in stock in the UK
Product details
Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMA Series
The Traco Power TMA series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The SMD technology of these isolated converters makes it possible to offer a product with high performance at low cost. The TME DC-DC converters require only 1.2 cm2 board space and are the perfect solution for space critical applications for board level power distribution
Traco - SIP 1W to 9W
Specifications
Brand
TRACOPOWER
Output Voltage
±15V dc
Input Voltage Range
4.5 → 5.5 V dc
Input Voltage Nominal
5 V dc
Isolation Voltage
1kV dc
Power Rating
1W
Output Current
±35mA
Mounting Type
Through Hole
Number of Outputs
2
Efficiency
79%
Package
SIP 6
Minimum Temperature
-40°C
Load Regulation
±10%
Maximum Temperature
+85°C
Series
TMA
Length
19.5mm
Depth
10.2mm
Country of Origin
TW
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
