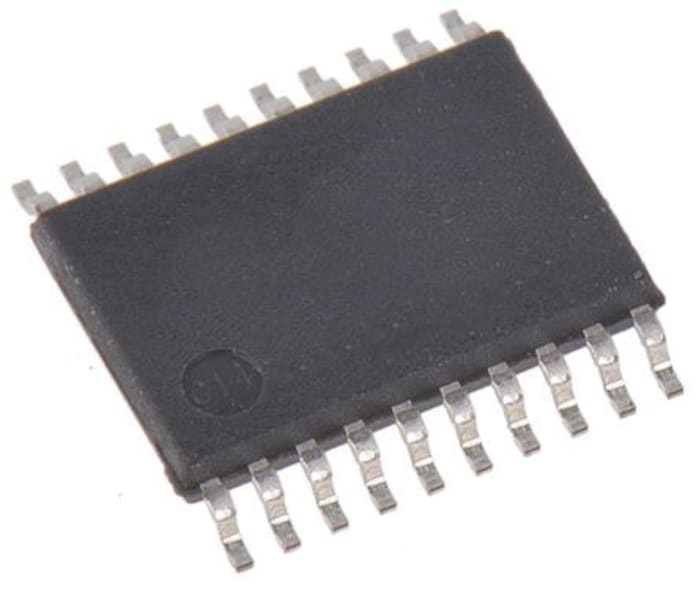

Maxim Integrated, DAC Quad 8 bit- Parallel, 20-Pin TSSOP
RS Stock No. 191-5289
Brand Maxim Integrated
Manufacturers Part No. MAX5100AEUP+
98 in stock in the UK
98 in stock in the UK
$ 6.738
Each (In a Tube of 74)
Maxim Integrated, DAC Quad 8 bit- Parallel, 20-Pin TSSOP
Live stock
98 in stock in the UK
Specifications
Brand
Maxim Integrated
Architecture
String DAC
Resolution
8 bit
Integral Nonlinearity Error
±1LSB
Number of DAC Channels
4
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
20
Maximum Settling Time
6µs
Digital Interface Type
Parallel
Output Polarity
Bipolar, Unipolar
Voltage Reference
Internal
Power Supply Type
Single
Minimum Operating Temperature
-40 °C
Typical Single Supply Voltage
2.7 to 5.5 V
Dimensions
6.6 x 4.5 x 0.95mm
Maximum Operating Temperature
85 °C
