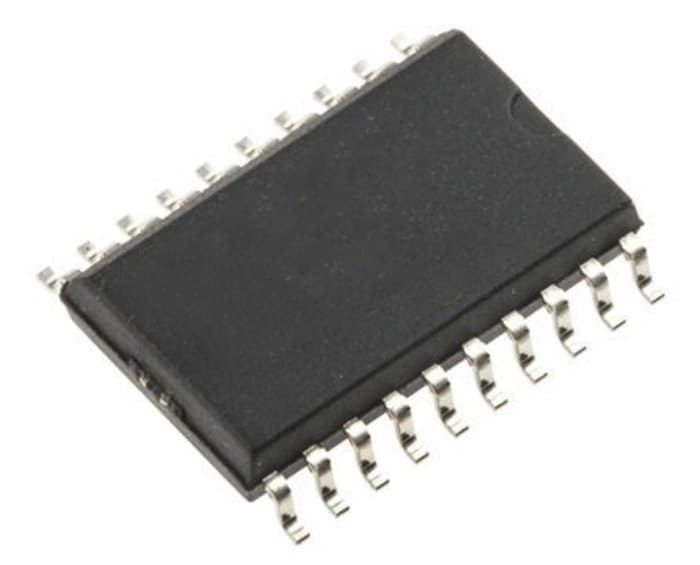

Maxim Integrated, DAC Quad 8 bit- Parallel, 20-Pin SOIC
RS Stock No. 191-4761
Brand Maxim Integrated
Manufacturers Part No. MAX506BCWP+
Temporarily out of stock
Temporarily out of stock
$ 12.29
Each
Maxim Integrated, DAC Quad 8 bit- Parallel, 20-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 12.29 |
| 10+ | $ 11.12 |
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Architecture
R-2R
Resolution
8 bit
Integral Nonlinearity Error
±1.5LSB
Number of DAC Channels
4
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
20
Maximum Settling Time
6µs
Digital Interface Type
Parallel
Output Polarity
Bipolar, Unipolar
Voltage Reference
External
Power Supply Type
Dual, Single
Minimum Operating Temperature
0 °C
Typical Single Supply Voltage
4.5 to 5.5 V
Dimensions
13 x 7.6 x 2.35mm
Maximum Operating Temperature
70 °C
