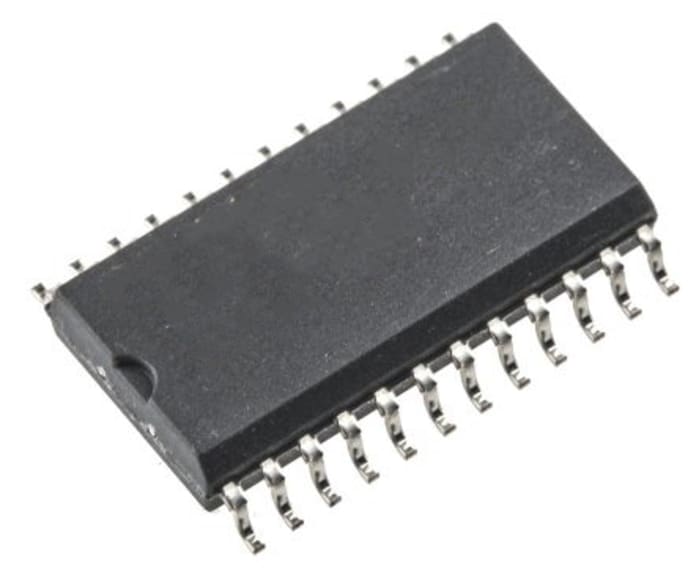

Maxim Integrated MAX6969AWG+, LED Display Driver 16-Segments, 5.5 (Maximum) V, 24-Pin SOIC
RS Stock No. 191-4735
Brand Maxim Integrated
Manufacturers Part No. MAX6969AWG+
Temporarily out of stock
Temporarily out of stock
$ 4.028
Each (In a Pack of 2)
Maxim Integrated MAX6969AWG+, LED Display Driver 16-Segments, 5.5 (Maximum) V, 24-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 4.028 |
| 10+ | $ 3.605 |
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Number of Segments
16
Matching
3 (Between Output) %, 6 (Between Ics) %
Maximum Supply Current
25 mA
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
24
Typical Operating Supply Voltage
5.5 (Maximum) V
Dimensions
15.6 x 7.6 x 2.35mm
Height
2.35mm
Length
15.6mm
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Width
7.6mm
Maximum Frequency
5MHz
Output Voltage
5.5 V
