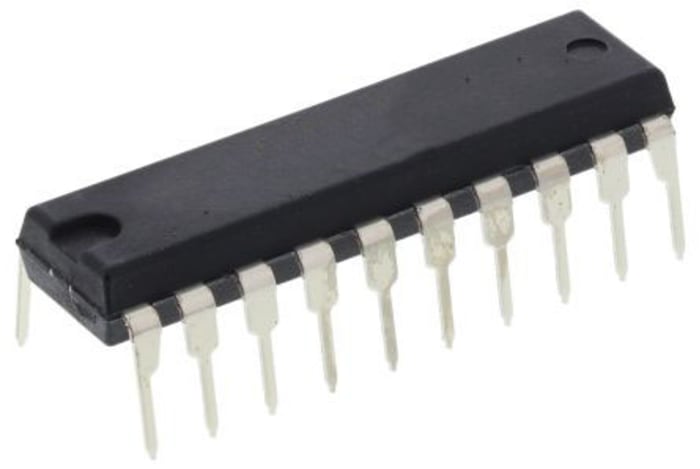

Maxim Integrated, DAC Quad 8 bit- ±14mV Parallel, 20-Pin PDIP
RS Stock No. 191-3979
Brand Maxim Integrated
Manufacturers Part No. MAX506BCPP+
30 in stock in the UK
30 in stock in the UK
$ 14.277
Each (In a Tube of 18)
Maxim Integrated, DAC Quad 8 bit- ±14mV Parallel, 20-Pin PDIP
Live stock
30 in stock in the UK
Specifications
Brand
Maxim Integrated
Architecture
R-2R
Resolution
8 bit
Full Scale Error
±14mV
Number of DAC Channels
4
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
20
Maximum Settling Time
6µs
Digital Interface Type
Parallel
Output Polarity
Bipolar, Unipolar
Voltage Reference
External
Power Supply Type
Single
Minimum Operating Temperature
0 °C
Typical Single Supply Voltage
4.5 to 5.5 V
Dimensions
26.54 x 7.87 x 4.45mm
Maximum Operating Temperature
70 °C
