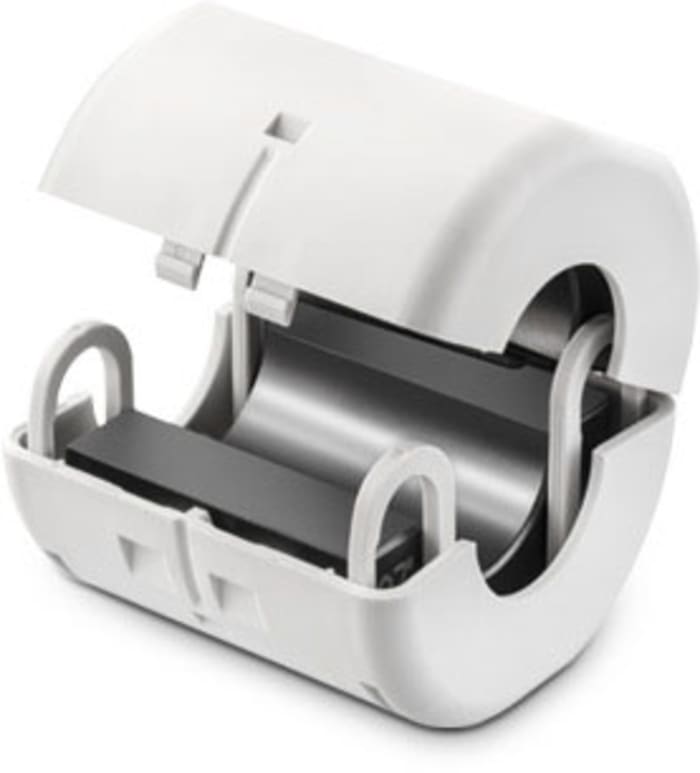

Ferrite Sleeve with key, 40 x 24 x 20mm, For Especially for Applications in the Low Frequency Range from 300 kHz to 30
RS Stock No. 185-7110
Brand Wurth Elektronik
Manufacturers Part No. 74272132
Permanently discontinued
Permanently discontinued
P.O.A
Ferrite Sleeve with key, 40 x 24 x 20mm, For Especially for Applications in the Low Frequency Range from 300 kHz to 30
Live stock
Permanently discontinued
Specifications
Brand
Wurth Elektronik
Type
Snap Ferrite
Series
STAR-TEC
Application
Especially for Applications in the Low Frequency Range from 300 kHz to 30 Mhz, Perfect for Applications with Varying Cable Diameter, Reusable because of the Key Technology Therefore Perfect for Test and Measuring Purposes and Cables with Difficult Access, Suppression of Electronic Ballasts (i.e. Neon Tube) in the Lighting Industry
Material
Manganese-Zinc (Coating)
Key
Yes
Outer Dimensions
40 x 24 x 20mm
Aperture Diameter
7 → 8.5mm
Number of Apertures
1
Outer Depth
40mm
Outer Height
20mm
Outer Width
24mm
Country of Origin
DE
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
