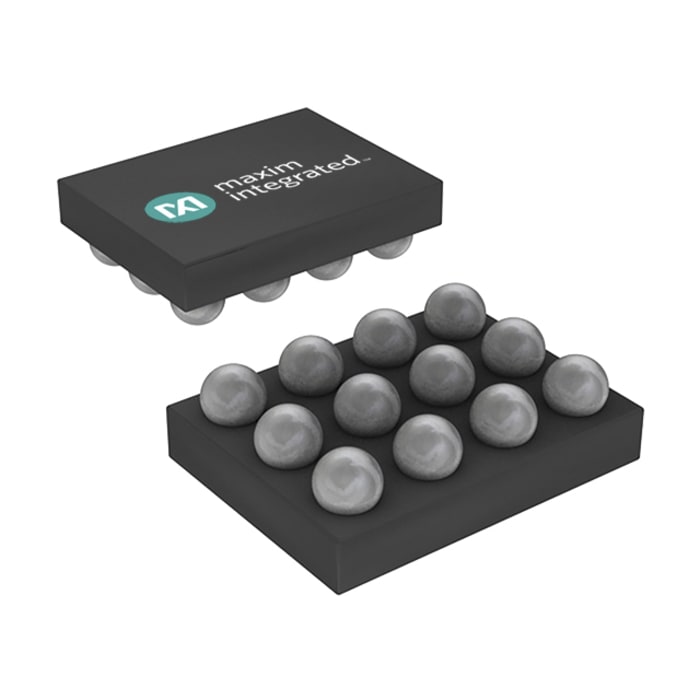

MAX4233ABC+T Maxim Integrated, Operational Amplifier, Op Amps, 10MHz 10 kHz, 10-Pin UCSP
2500 in stock in the UK
$ 1.278
Each (In a Pack of 5)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.278 |
| 25 - 95 | $ 1.085 |
| 100 - 245 | $ 0.892 |
| 250 - 495 | $ 0.867 |
| 500+ | $ 0.851 |
Live stock
2500 in stock in the UK
Specifications
Brand
Maxim Integrated
Amplifier Type
Operational Amplifier
Mounting Type
Surface Mount
Package Type
UCSP
Power Supply Type
Dual
Number of Channels per Chip
2
Pin Count
10
Typical Gain Bandwidth Product
10MHz
Output Type
Rail to Rail
Typical Dual Supply Voltage
±1.35 to ±2.5V
Typical Slew Rate
10V/µs
Maximum Operating Frequency
10 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q100
Height
0.4mm
Width
2.02mm
Input Voltage Range
2.7 → 5.5 V
Typical Voltage Gain
100 dB
Dimensions
1.54 x 2.02 x 0.4mm
Output Current
200 (Typ.) mA
Offset Voltage
±8mV
Minimum Input Voltage
2.7 V
Typical Input Voltage Noise Density
15nV/√Hz
Length
1.54mm
Maximum Input Voltage
5.5 V
Country of Origin
TW
