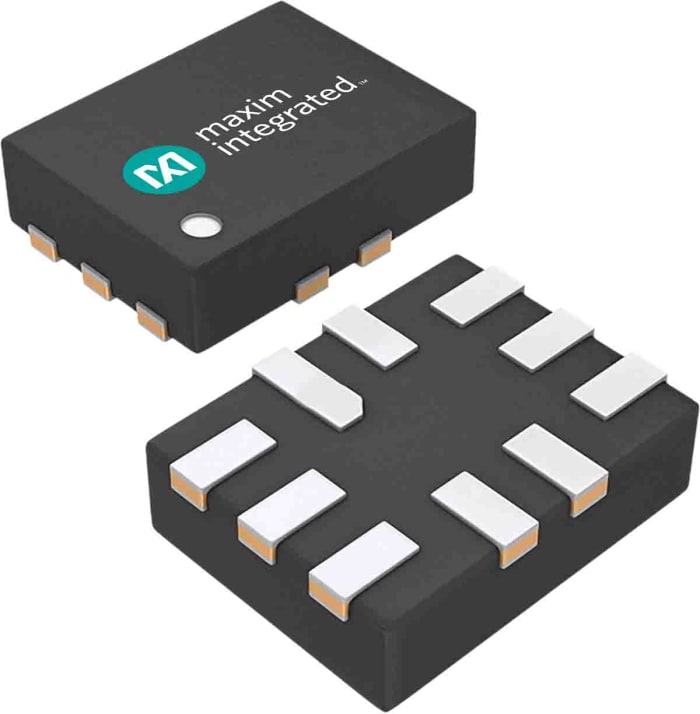

MAX9638AVB+T Maxim Integrated, Operational Amplifier, Op Amps, 1.5MHz 10 kHz, 10-Pin UTQFN
RS Stock No. 191-3550
Brand Maxim Integrated
Manufacturers Part No. MAX9638AVB+T
2225 in stock in the UK
2225 in stock in the UK
$ 1.343
Each (In a Pack of 5)
MAX9638AVB+T Maxim Integrated, Operational Amplifier, Op Amps, 1.5MHz 10 kHz, 10-Pin UTQFN
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.343 |
| 25 - 95 | $ 1.133 |
| 100 - 245 | $ 0.910 |
| 250 - 495 | $ 0.886 |
| 500+ | $ 0.873 |
Live stock
2225 in stock in the UK
Specifications
Brand
Maxim Integrated
Amplifier Type
Operational Amplifier
Mounting Type
Surface Mount
Package Type
UTQFN
Power Supply Type
Dual
Number of Channels per Chip
2
Pin Count
10
Typical Gain Bandwidth Product
1.5MHz
Output Type
Rail to Rail
Typical Slew Rate
0.9V/µs
Maximum Operating Frequency
10 kHz
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Minimum Input Voltage
2.1 V
Typical Input Voltage Noise Density
38nV/√Hz
Length
1.9mm
Maximum Input Voltage
5.5 V
Height
0.5mm
Width
1.5mm
Input Voltage Range
2.1 → 5.5 V
Typical Voltage Gain
124 dB
Dimensions
1.9 x 1.5 x 0.5mm
Output Current
55 (Typ.) mA
Offset Voltage
3.5mV
