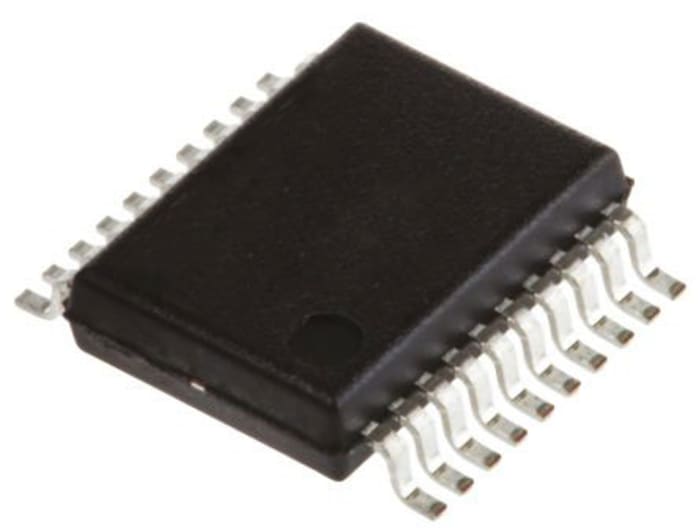

Maxim Integrated, DAC Quad 10 bit- SPI Serial, 20-Pin SSOP
RS Stock No. 191-3364
Brand Maxim Integrated
Manufacturers Part No. MAX5250BCAP+
Temporarily out of stock
Temporarily out of stock
$ 10.42
Each
Maxim Integrated, DAC Quad 10 bit- SPI Serial, 20-Pin SSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 10.42 |
| 10 - 24 | $ 9.90 |
| 25+ | $ 9.59 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Architecture
R-2R
Resolution
10 bit
Integral Nonlinearity Error
±1LSB
Number of DAC Channels
4
Mounting Type
Surface Mount
Package Type
SSOP
Pin Count
20
Maximum Settling Time
10µs
Digital Interface Type
SPI Serial
Output Polarity
Bipolar, Unipolar
Voltage Reference
External
Power Supply Type
Single
Minimum Operating Temperature
0 °C
Typical Single Supply Voltage
4.5 to 5.5 V
Dimensions
7.33 x 5.38 x 1.78mm
Maximum Operating Temperature
70 °C
