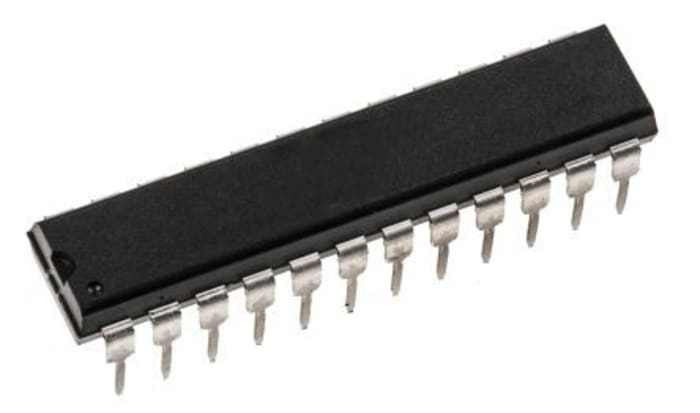

Maxim Integrated, DAC Quad 12 bit- Parallel, 24-Pin DIP
RS Stock No. 191-3322
Brand Maxim Integrated
Manufacturers Part No. MAX526DCNG+
30 in stock in the UK
30 in stock in the UK
$ 41.528
Each (In a Tube of 15)
Maxim Integrated, DAC Quad 12 bit- Parallel, 24-Pin DIP
Live stock
30 in stock in the UK
Specifications
Brand
Maxim Integrated
Architecture
R-2R
Resolution
12 bit
Integral Nonlinearity Error
±1LSB
Number of DAC Channels
4
Mounting Type
Surface Mount
Package Type
DIP
Pin Count
24
Maximum Settling Time
3µs
Digital Interface Type
Parallel
Voltage Reference
External
Power Supply Type
Dual
Typical Single Supply Voltage
4.75 to 5.5 V
Dimensions
32.13 x 7.87 x 4.45mm
Minimum Operating Temperature
0 °C
Maximum Operating Temperature
70 °C
