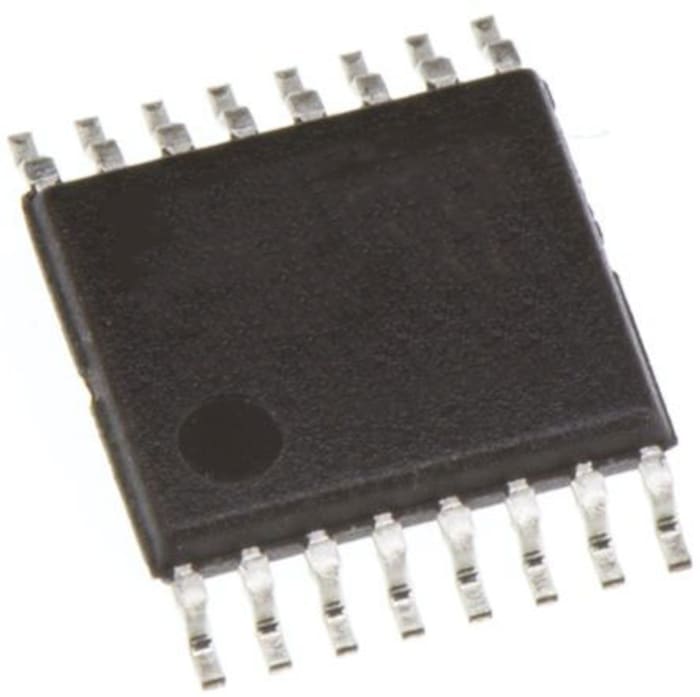

Maxim Integrated Surface Mount Switching Regulator, 7.15 → 7.6V dc Output Voltage, 4.5 → 40V dc Input
RS Stock No. 190-7937
Brand Maxim Integrated
Manufacturers Part No. MAX15005AAUE+
Temporarily out of stock
Temporarily out of stock
$ 3.118
Each (In a Pack of 5)
Maxim Integrated Surface Mount Switching Regulator, 7.15 → 7.6V dc Output Voltage, 4.5 → 40V dc Input
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 3.118 |
| 25 - 45 | $ 2.207 |
| 50+ | $ 2.189 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Input Voltage
4.5 → 40V dc
Output Voltage
7.15 → 7.6V dc
Number of Outputs
1
Output Current
100mA
Mounting Type
Surface Mount
Minimum Temperature
-40°C
Maximum Temperature
+125°C
Protection Features
Cycle-By-Cycle, Hiccup Current Limit, Output Overvoltage Protection, Thermal Shutdown
Switching Frequency Range
500kHz
Power Signal Conversion Type
DC-DC
Length
0.201mm
Width
0.177mm
Depth
0.037mm
Application
Automotive, Boost Converters, Forward, Isolated Flyback, Nonisolated SEPIC, Vacuum Fluorescent Display (VFD) Power Supply
Country of Origin
TH
