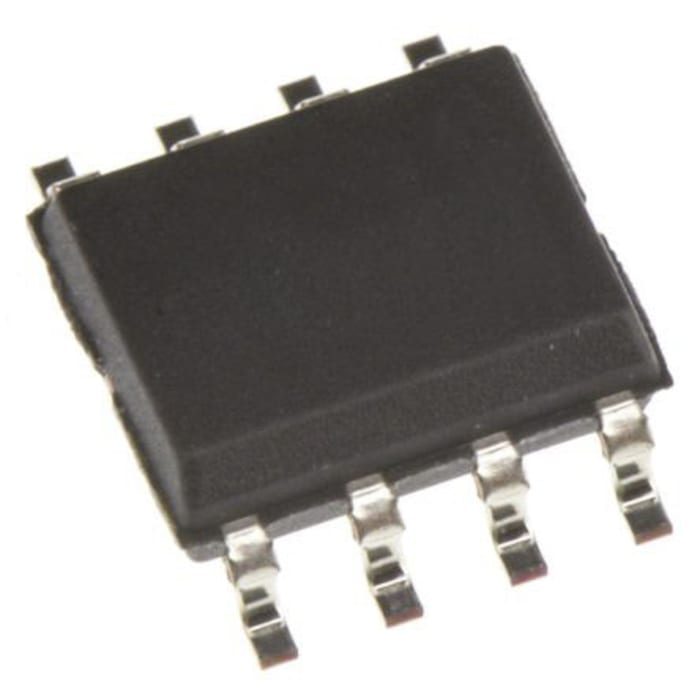

Maxim Integrated Precision Series/Shunt Voltage Reference 1.25V ±2% 8-Pin SO, MAX6190AESA+
RS Stock No. 190-7825
Brand Maxim Integrated
Manufacturers Part No. MAX6190AESA+
Temporarily out of stock
Temporarily out of stock
$ 4.434
Each (In a Pack of 5)
Maxim Integrated Precision Series/Shunt Voltage Reference 1.25V ±2% 8-Pin SO, MAX6190AESA+
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 4.434 |
| 25 - 45 | $ 3.827 |
| 50+ | $ 3.813 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Nominal Voltage
1.25V
Package Type
SO
Reference Type
Precision
Initial Accuracy
±2%
Mounting Type
Surface Mount
Topology
Series/Shunt
Maximum Input Voltage
12.6 V
Minimum Output Voltage
1.248 V
Maximum Output Voltage
1.252 V
Pin Count
8
Line Regulation
80 μV/V
Load Regulation
0.5 (Sourcing) μV/μA, 0.6 (Sink) μV/μA
Dimensions
5 x 4 x 1.5mm
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Length
5mm
Country of Origin
TH
