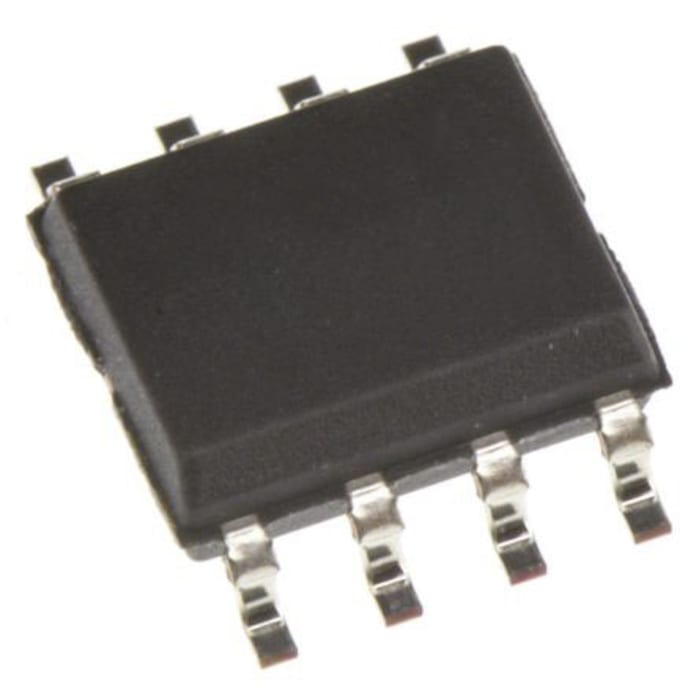

Maxim Integrated Precision Series/Shunt Voltage Reference 2.5V ±2% 8-Pin SO, MAX6166AESA+
RS Stock No. 190-7802
Brand Maxim Integrated
Manufacturers Part No. MAX6166AESA+
Temporarily out of stock
Temporarily out of stock
$ 4.815
Each (In a Pack of 5)
Maxim Integrated Precision Series/Shunt Voltage Reference 2.5V ±2% 8-Pin SO, MAX6166AESA+
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 4.815 |
| 25 - 45 | $ 4.117 |
| 50+ | $ 3.985 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Nominal Voltage
2.5V
Package Type
SO
Reference Type
Precision
Initial Accuracy
±2%
Mounting Type
Surface Mount
Topology
Series/Shunt
Maximum Input Voltage
12.6 V
Minimum Output Voltage
2.498 V
Maximum Output Voltage
2.502 V
Pin Count
8
Line Regulation
250 μV/V
Load Regulation
0.9 (Sourcing) mV/mA, 5 (Sink) mV/mA
Dimensions
5 x 4 x 1.5mm
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Length
5mm
