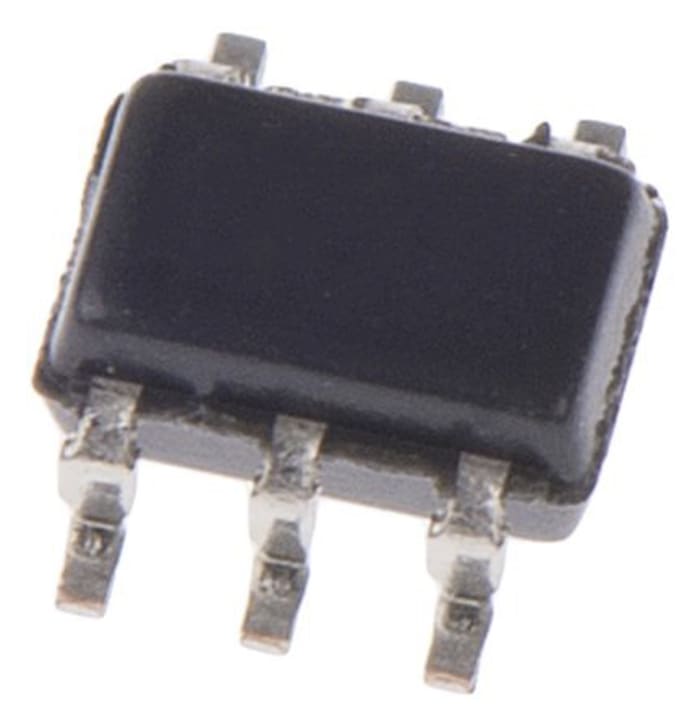

MAX9911EXT+T Maxim Integrated, Operational Amplifier, Op Amps, 200kHz 1 kHz, 1.8 → 5.5 V, 6-Pin SC-70
Temporarily out of stock
$ 0.592
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000+ | $ 0.592 |
| 10+ | $ 0.870 |
| 50+ | $ 0.783 |
| 100+ | $ 0.635 |
| 500+ | $ 0.610 |
Live stock
Temporarily out of stock
Specifications
Brand
Maxim Integrated
Amplifier Type
Operational Amplifier
Mounting Type
Surface Mount
Package Type
SC-70
Power Supply Type
Single
Number of Channels per Chip
1
Pin Count
6
Typical Single Supply Voltage
1.8 → 5.5 V
Typical Gain Bandwidth Product
200kHz
Output Type
Rail to Rail
Typical Slew Rate
0.1V/µs
Maximum Operating Frequency
1 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Height
1mm
Width
1.35mm
Input Voltage Range
1.8 → 5.5 V
Typical Voltage Gain
120 dB
Input Offset Current
20pA
Dimensions
2.15 x 1.35 x 1mm
Output Current
15 mA
Offset Voltage
5mV
Minimum Input Voltage
1.8 V
Typical Input Voltage Noise Density
400nV/√Hz
Length
2.15mm
Maximum Input Voltage
5.5 V
