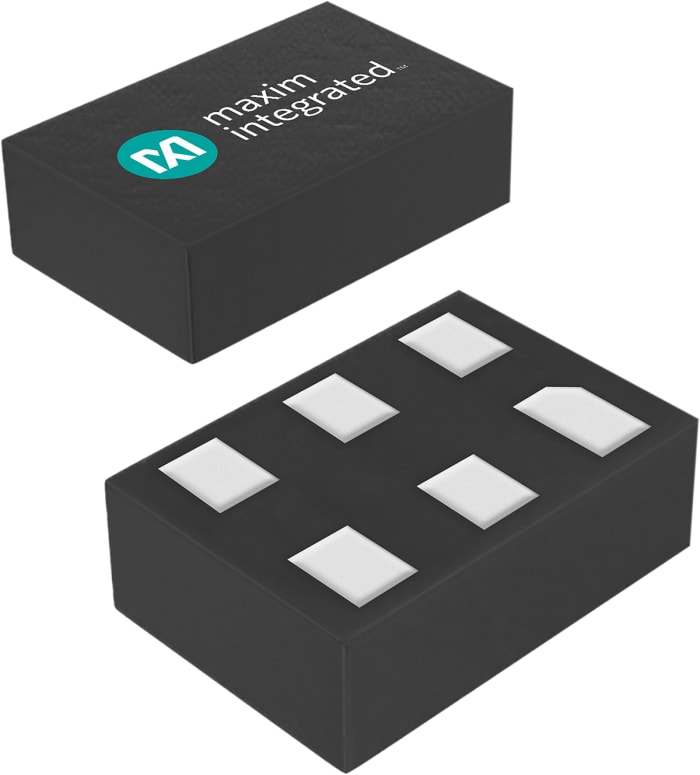

MAX44260AYT+T Maxim Integrated, Operational Amplifier, Op Amps, 15MHz 10 kHz, 1.8 → 5.5 V, 6-Pin μDFN

Brand

Maxim Integrated

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

μDFN

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

6

Typical Single Supply Voltage

1.8 → 5.5 V

Typical Gain Bandwidth Product

15MHz

Output Type

Rail to Rail

Typical Slew Rate

7V/µs

Maximum Operating Frequency

10 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Height

0.55mm

Width

1.05mm

Input Voltage Range

1.8 → 5.5 V

Typical Voltage Gain

100 dB

Dimensions

1.55 x 1.05 x 0.55mm

Output Current

50 (Typ.) mA

Minimum Input Voltage

1.8 V

Typical Input Voltage Noise Density

12.7nV/√Hz

Length

1.55mm

Maximum Input Voltage

5.5 V

Offset Voltage

500µV
