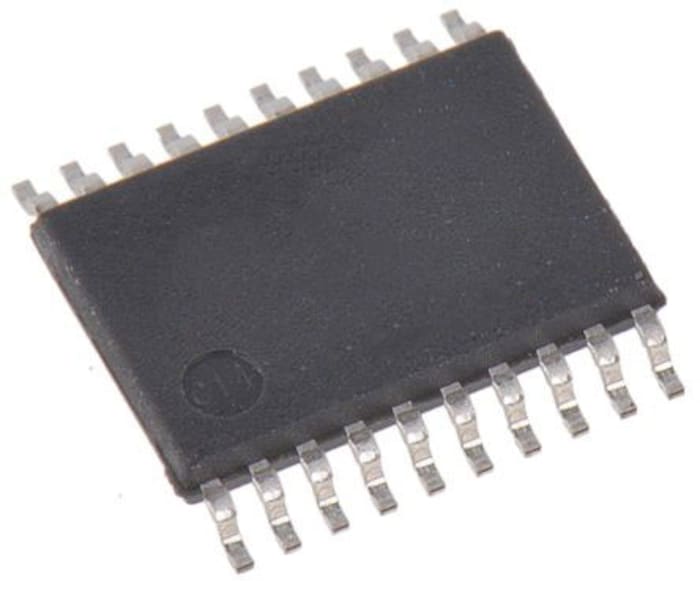

Maxim Integrated, DAC Octal 12 bit- ±0.5%FSR 4-Wire Serial, Microwire, Serial (DSP), SPI/QSPI, 20-Pin TSSOP
RS Stock No. 190-5548
Brand Maxim Integrated
Manufacturers Part No. MAX5725BAUP+
3 in stock in the UK
3 in stock in the UK
$ 8.63
Each
Maxim Integrated, DAC Octal 12 bit- ±0.5%FSR 4-Wire Serial, Microwire, Serial (DSP), SPI/QSPI, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 8.63 |
| 10 - 24 | $ 7.94 |
| 25+ | $ 7.64 |
Production pack (Tube)
Live stock
3 in stock in the UK
Specifications
Brand
Maxim Integrated
Resolution
12 bit
Full Scale Error
±0.5%FSR
Integral Nonlinearity Error
±1LSB
Number of DAC Channels
8
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
20
Maximum Settling Time
4.5µs
Digital Interface Type
4-Wire Serial, Microwire, Serial (DSP), SPI/QSPI
Output Polarity
Bipolar, Unipolar
Voltage Reference
External, Internal
Power Supply Type
Single
Minimum Operating Temperature
-40 °C
Typical Single Supply Voltage
2.7 to 5.5 V
Dimensions
6.6 x 4.5 x 0.95mm
Maximum Operating Temperature
125 °C
