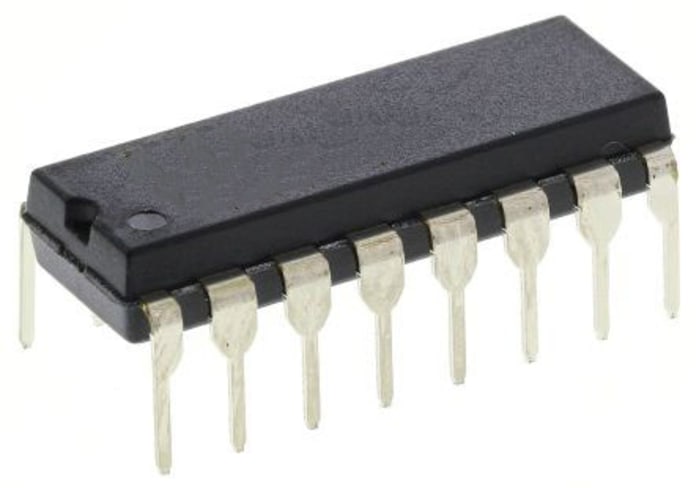

Maxim Integrated, DAC Quad 12 bit- Serial (3 Wire), 16-Pin PDIP
RS Stock No. 190-5508
Brand Maxim Integrated
Manufacturers Part No. MAX536BCPE+
15 in stock in the UK
15 in stock in the UK
$ 43.65
Each
Maxim Integrated, DAC Quad 12 bit- Serial (3 Wire), 16-Pin PDIP
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 43.65 |
| 5+ | $ 44.26 |
Production pack (Tube)
Live stock
15 in stock in the UK
Specifications
Brand
Maxim Integrated
Architecture
R-2R
Resolution
12 bit
Integral Nonlinearity Error
±1LSB
Number of DAC Channels
4
Mounting Type
Through Hole
Package Type
PDIP
Pin Count
16
Maximum Settling Time
3µs
Digital Interface Type
Serial (3 Wire)
Output Polarity
Bipolar, Unipolar
Voltage Reference
External
Power Supply Type
Single
Minimum Operating Temperature
0 °C
Typical Single Supply Voltage
10.8 to 13.2 V
Dimensions
19.43 x 7.87 x 4.45mm
Maximum Operating Temperature
70 °C
