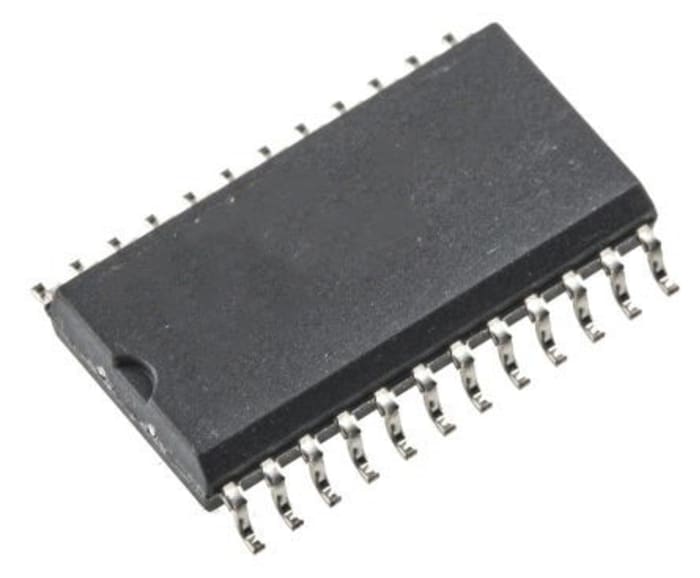

Maxim Integrated MAX7221CWG+T, LED Display Driver, 8-Digits 7-Segments, 5.5 (Maximum) V, 24-Pin SOIC
RS Stock No. 190-4920
Brand Maxim Integrated
Manufacturers Part No. MAX7221CWG+T
769 in stock in the UK
769 in stock in the UK
$ 6.316
Each (On a Reel of 1000)
Maxim Integrated MAX7221CWG+T, LED Display Driver, 8-Digits 7-Segments, 5.5 (Maximum) V, 24-Pin SOIC
Live stock
769 in stock in the UK
Specifications
Brand
Maxim Integrated
Number of Digits
8
Number of Segments
7
Matching
3 (Typ.)%
Maximum Supply Current
330 mA
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
24
Typical Operating Supply Voltage
5.5 (Maximum) V
Dimensions
15.6 x 7.6 x 2.35mm
Height
2.35mm
Length
15.6mm
Maximum Operating Temperature
+70 °C
Minimum Operating Temperature
0 °C
Width
7.6mm
Maximum Frequency
10MHz
Output Voltage
0.4 V
