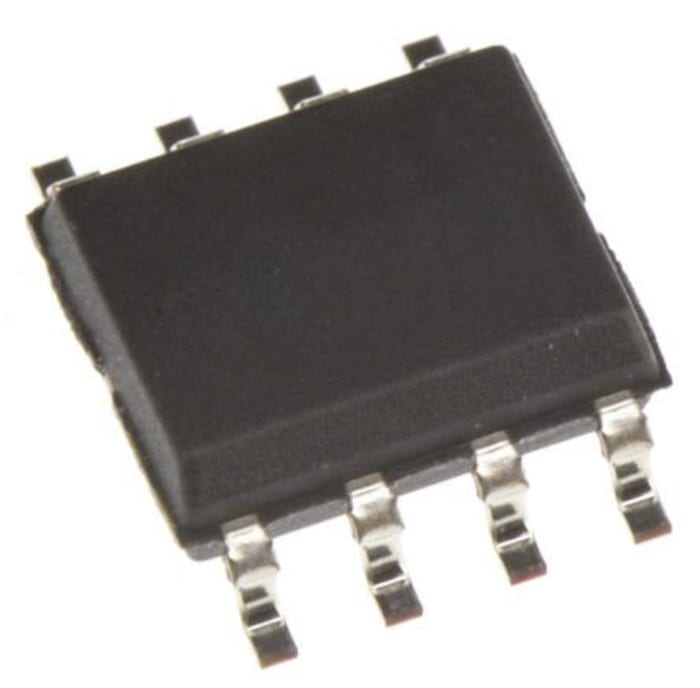

Maxim Integrated Surface Mount Switching Regulator, -4.8 → -5.2V dc Output Voltage, 3 → 16.5V dc Input
RS Stock No. 190-4536
Brand Maxim Integrated
Manufacturers Part No. MAX774ESA+
76 in stock in the UK
76 in stock in the UK
$ 4.513
Each (In a Tube of 100)
Maxim Integrated Surface Mount Switching Regulator, -4.8 → -5.2V dc Output Voltage, 3 → 16.5V dc Input
Buy in bulk
| quantity | Unit price |
|---|---|
| 100 - 100 | $ 4.513 |
| 200+ | $ 4.619 |
Live stock
76 in stock in the UK
Specifications
Brand
Maxim Integrated
Input Voltage
3 → 16.5V dc
Output Voltage
-4.8 → -5.2V dc
Number of Outputs
1
Output Current
125mA
Power Rating
5W
Mounting Type
Surface Mount
Minimum Temperature
0°C
Maximum Temperature
+70°C
Efficiency
82 (Typ.)%
Length
5mm
Maximum Input Current
100µA
Width
4mm
Input Power Range
5W
Depth
1.5mm
Application
Battery-Powered Applications, Data Communicators, High-Efficiency DC-to-DC Converters, LCD-Bias Generators
Switching Frequency Range
300kHz
Rated Output Power
5W
Power Signal Conversion Type
DC-DC
