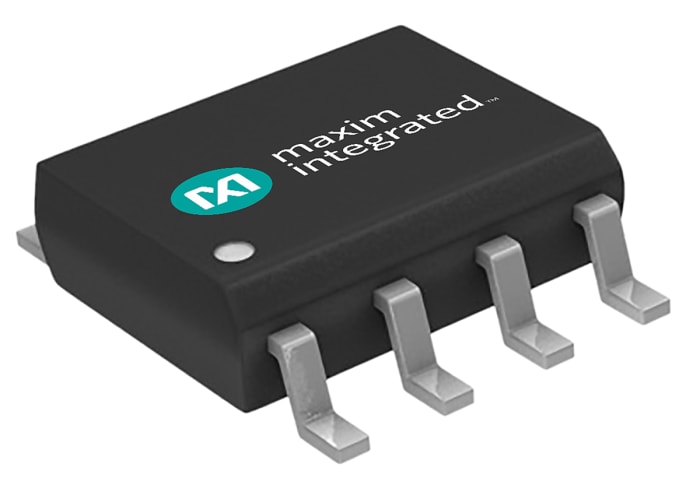

Maxim Integrated Surface Mount Switching Regulator, -4.5 → -20V dc Output Voltage, 4.5 → 20V dc Input

Brand

Maxim Integrated

Input Voltage

4.5 → 20V dc

Output Voltage

-4.5 → -20V dc

Number of Outputs

1

Mounting Type

Surface Mount

Minimum Temperature

-40°C

Maximum Temperature

+85°C

Efficiency

99.9 (Typ.)%

Maximum Input Current

1mA

Width

4mm

Depth

1.5mm

Application

Data Acquisition Systems, Inexpensive Negative Supplies, RS-232 Power Supplies, Supply Splitter Vout = Vs/2, Up to -20V for Op Amps and Other Linear Circuits

Length

5mm

Special Features

Reguires Only 2 External Capacitors
