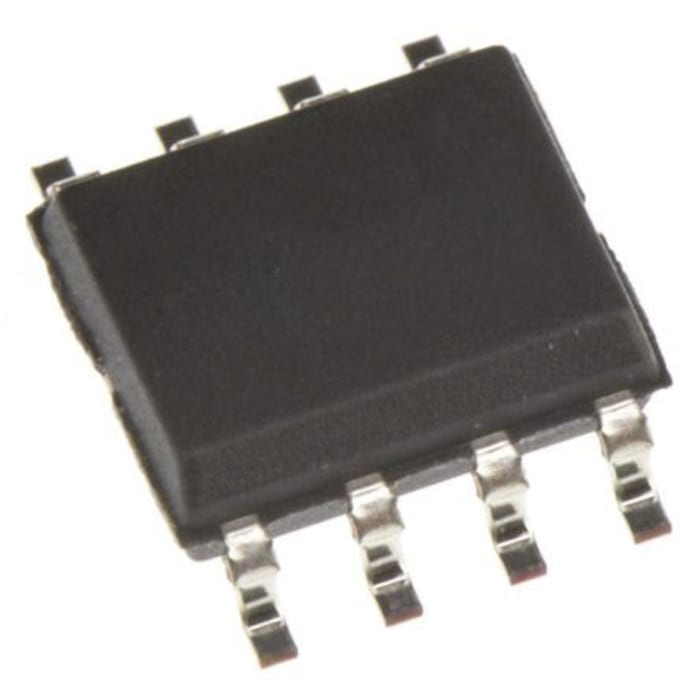

Maxim Integrated Precision Series/Shunt Voltage Reference 1.25V ±2% 8-Pin SO, MAX6161AESA+
RS Stock No. 190-4451
Brand Maxim Integrated
Manufacturers Part No. MAX6161AESA+
Temporarily out of stock
Back order for despatch on 04/06/2021
Temporarily out of stock
$ 3.276
Each (In a Tube of 100)
Maxim Integrated Precision Series/Shunt Voltage Reference 1.25V ±2% 8-Pin SO, MAX6161AESA+
Live stock
Temporarily out of stock
Back order for despatch on 04/06/2021
Specifications
Brand
Maxim Integrated
Nominal Voltage
1.25V
Package Type
SO
Reference Type
Precision
Initial Accuracy
±2%
Mounting Type
Surface Mount
Topology
Series/Shunt
Maximum Input Voltage
12.6 V
Minimum Output Voltage
1.248 V
Maximum Output Voltage
1.252 V
Pin Count
8
Line Regulation
150 μV/V
Load Regulation
0.9 (Sourcing) mV/mA, 2.5 (Sink) mV/mA
Dimensions
5 x 4 x 1.5mm
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Length
5mm
