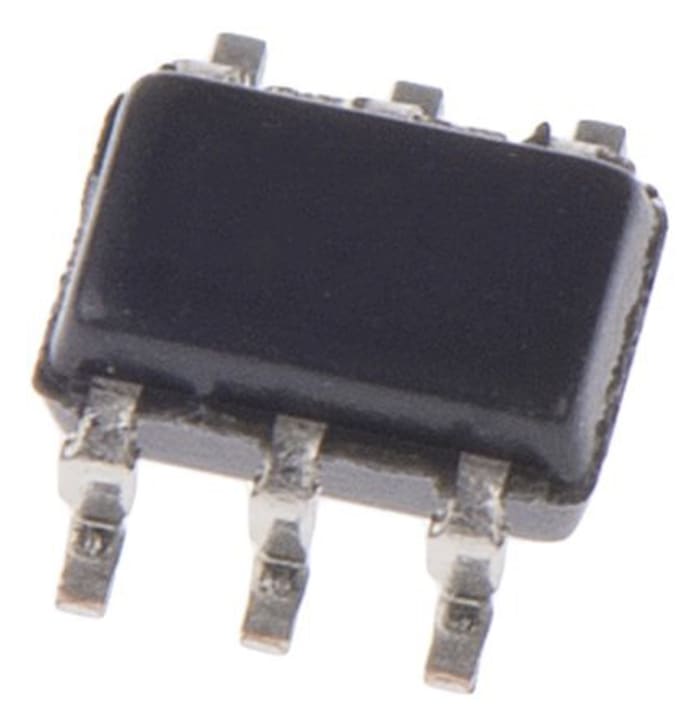

MAX9911EXT+T Maxim Integrated, Operational Amplifier, Op Amps, 200kHz 1 kHz, 1.8 → 5.5 V, 6-Pin SC-70

Brand

Maxim Integrated

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

SC-70

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

6

Typical Single Supply Voltage

1.8 → 5.5 V

Typical Gain Bandwidth Product

200kHz

Output Type

Rail to Rail

Typical Slew Rate

0.1V/µs

Maximum Operating Frequency

1 kHz

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Minimum Input Voltage

1.8 V

Typical Input Voltage Noise Density

400nV/√Hz

Length

2.15mm

Maximum Input Voltage

5.5 V

Height

1mm

Width

1.35mm

Input Voltage Range

1.8 → 5.5 V

Typical Voltage Gain

120 dB

Input Offset Current

20pA

Dimensions

2.15 x 1.35 x 1mm

Output Current

15 mA

Offset Voltage

5mV
