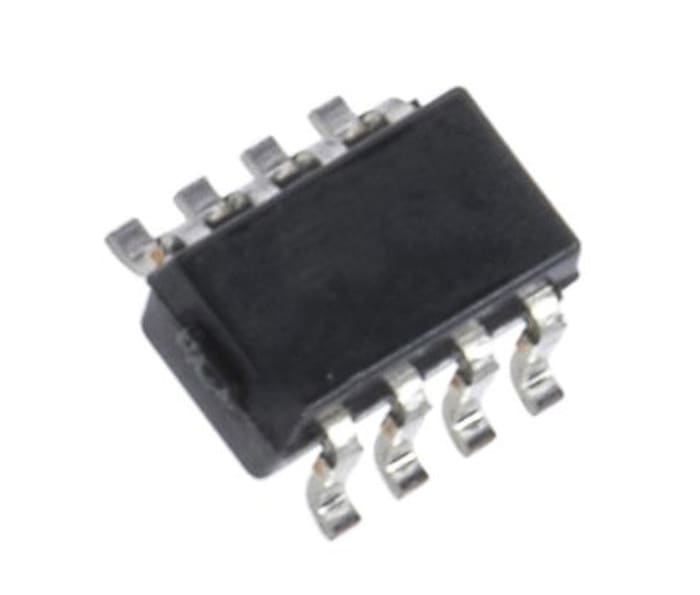

MAX4413EKA+T Maxim Integrated, Operational Amplifier, Op Amps, 500MHz 10 kHz, 2.7 → 5.5 V, 8-Pin SOT-23
RS Stock No. 190-4333
Brand Maxim Integrated
Manufacturers Part No. MAX4413EKA+T
7500 in stock in the UK
7500 in stock in the UK
$ 2.264
Each (On a Reel of 2500)
MAX4413EKA+T Maxim Integrated, Operational Amplifier, Op Amps, 500MHz 10 kHz, 2.7 → 5.5 V, 8-Pin SOT-23
Live stock
7500 in stock in the UK
Specifications
Brand
Maxim Integrated
Amplifier Type
Operational Amplifier
Mounting Type
Surface Mount
Package Type
SOT-23
Power Supply Type
Single
Number of Channels per Chip
1
Pin Count
8
Typical Single Supply Voltage
2.7 → 5.5 V
Typical Gain Bandwidth Product
500MHz
Output Type
Rail to Rail
Typical Slew Rate
140V/µs
Maximum Operating Frequency
10 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Height
1.3mm
Width
1.75mm
Input Voltage Range
2.7 → 5.5 V
Typical Voltage Gain
93 dB
Dimensions
3 x 1.75 x 1.3mm
Output Current
75 (Typ.) mA
Offset Voltage
9mV
Minimum Input Voltage
2.7 V
Typical Input Voltage Noise Density
13nV/√Hz
Length
3mm
Maximum Input Voltage
5.5 V
