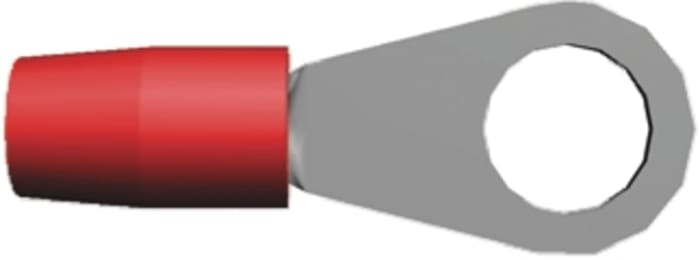

TE Connectivity, TERMINYL Insulated Ring Terminal, M10 Stud Size, 6.6mm² to 10.5mm² Wire Size, Red
Temporarily out of stock
Back order for despatch on 05/18/2021
$ 1.790
Each (In a Pack of 100)
Live stock
Temporarily out of stock
Back order for despatch on 05/18/2021
Product details
TE Connectivity TERMINYL Crimp Ring Terminals
TERMINYL crimp ring terminals designed for use with larger wire sizes from 8 AWG to 4/0 AWG. These TERMINYL ring terminals are made from high grade conductivity copper per ASTM B-152 and tin plated per ATSM B-545 and are designed to withstand extreme vibration, shock and high temperatures. the funnel entry, colour-coded moulded nylon insulation of these TERMINYL wire connectors enables wires to be inserted easily and acts as an insulation support.
TE Connectivity Terminyl Range
Specifications
Brand
TE Connectivity
Series
TERMINYL
Insulation
Insulated
Insulation Material
Nylon
Inner Ring Diameter
9.91mm
Outer Ring Diameter
14.91mm
Minimum Wire Size mm²
6.6mm²
Maximum Wire Size mm²
10.5mm²
Minimum Wire Size AWG
8AWG
Maximum Wire Size AWG
8AWG
Stud Size
M10
Colour
Red
Contact Plating
Tin
Contact Material
Copper
Thickness
1.02mm
Overall Length
39.17mm
