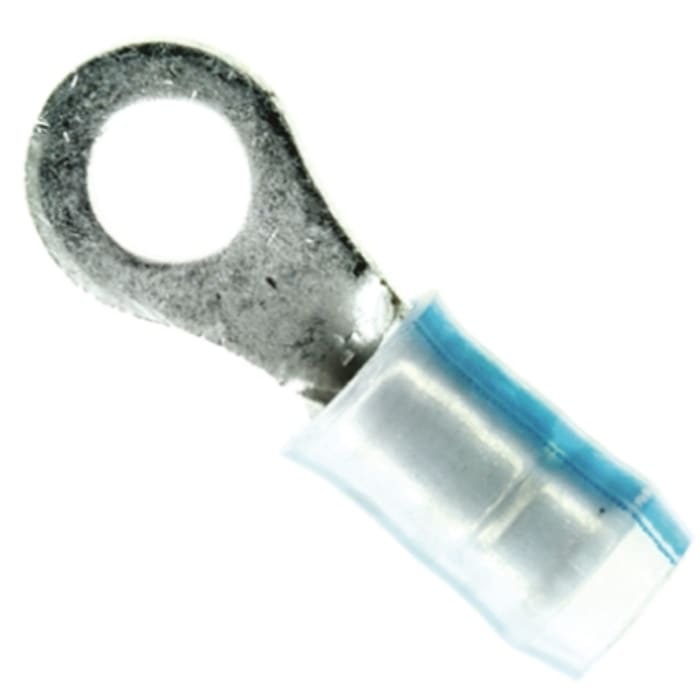

TE Connectivity, PIDG Insulated Ring Terminal, M4 (#8) Stud Size, 1mm² to 2.6mm² Wire Size, Natural
445 in stock in the UK
$ 330.06
1 Pack of 1000
Live stock
445 in stock in the UK
Product details
TE Connectivity PIDG Radiation Resistant Ring Tongue Crimp Terminals
PIDG radiation resistant ring tongue crimp terminals made from high conductivity bright tin-plated copper with a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a PVF2 colour coded insulation sleeve.
TE Connectivity PIDG Terminals
Specifications
Brand
TE Connectivity
Series
PIDG
Insulation
Insulated
Insulation Material
PVDF
Inner Ring Diameter
0.171in
Outer Ring Diameter
0.312in
Minimum Wire Size mm²
1mm²
Maximum Wire Size mm²
2.6mm²
Minimum Wire Size AWG
16AWG
Maximum Wire Size AWG
14AWG
Stud Size
M4 (#8)
Colour
Natural
Contact Material
Copper
Contact Plating
Tin
Thickness
0.031in
Overall Length
0.844in
Technical Document
Statement of Conformity
