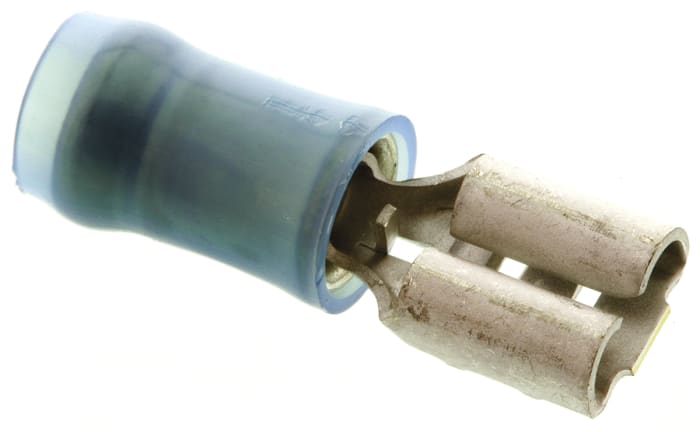

TE Connectivity, PIDG FASTON .205 Blue Insulated Spade Connector, 5.21 x 0.81mm Tab Size, 1.3mm² to 2mm²
Temporarily out of stock
$ 314.10
1 Pack of 1000
Live stock
Temporarily out of stock
Product details
TE Connectivity PIDG Faston 205 Receptacle Wire Crimp Terminals
PIDG insulated Faston 205 quick disconnect receptacle wire crimp terminal with a mating area interface of 5.21 x 0.81mm. This PIDG Faston 205 quick disconnect receptacle crimp terminal consists of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve.
TE Connectivity PIDG Terminals
Specifications
Brand
TE Connectivity
Minimum Wire Size mm²
1.3mm²
Maximum Wire Size mm²
2mm²
Insulation
Insulated
Gender
Female
Tab Size
5.21 x 0.81mm
Colour
Blue
Minimum Wire Size AWG
16AWG
Maximum Wire Size AWG
14AWG
Termination Method
Crimp
Contact Material
Brass
Contact Plating
Tin
Overall Length
0.8in
Insulation Material
Nylon
Series
PIDG FASTON .205
