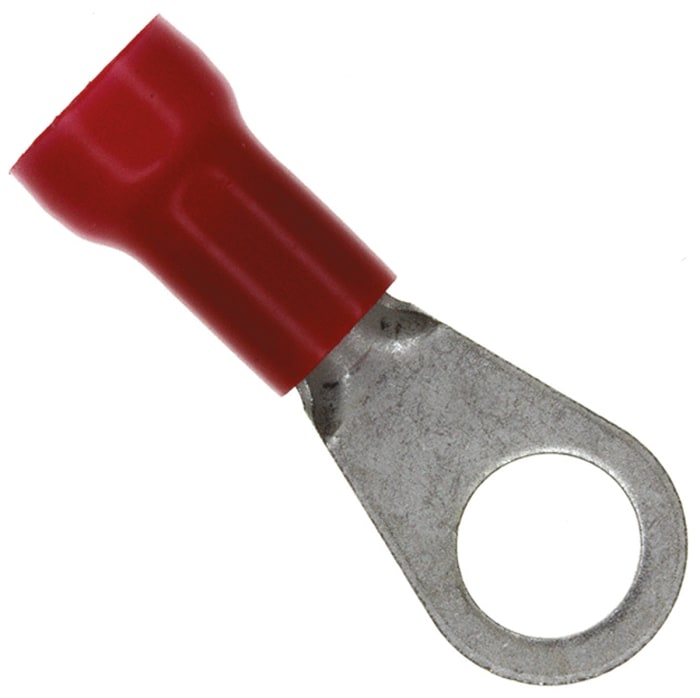

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M10 (3/8) Stud Size, 6.6mm² to 10.5mm² Wire Size, Red
400 in stock in the UK
$ 1.222
Each (In a Pack of 100)
Live stock
400 in stock in the UK
Product details
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
TE Connectivity Plasti-Grip Terminals
Specifications
Brand
TE Connectivity
Series
PLASTI-GRIP
Insulation
Insulated
Insulation Material
Vinyl
Outer Ring Diameter
14.91mm
Inner Ring Diameter
9.91mm
Minimum Wire Size mm²
6.6mm²
Maximum Wire Size mm²
10.5mm²
Minimum Wire Size AWG
8AWG
Maximum Wire Size AWG
8AWG
Stud Size
M10 (3/8)
Colour
Red
Contact Plating
Tin
Contact Material
Copper
Thickness
1.02mm
Overall Length
43.08mm
