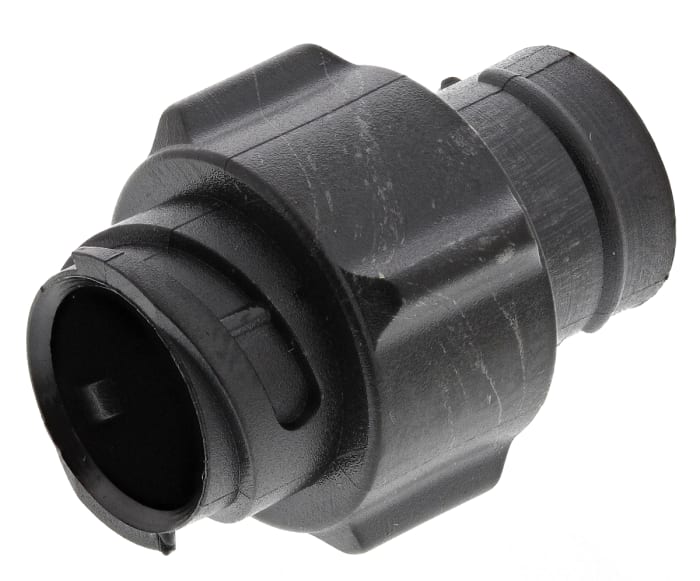

Deutsch Crimp Housing, 2 Contacts, Cable Mount, IP67
Temporarily out of stock
$ 5.022
Each (In a Pack of 250)
Buy in bulk
| quantity | Unit price |
|---|---|
| 250 - 250 | $ 5.022 |
| 500 - 750 | $ 4.771 |
| 1000+ | $ 4.569 |
Live stock
Temporarily out of stock
Product details
Series 100, 2, 3 & 4 Way
Available in cable plug and panel socket standard mating configuration, cable sockets may also be used to make in-line connections to the cable plug. Panel sockets permit flange or jam nut mount into a max. panel thickness of 4mm.,Daniels 8 point crimp tools and turrets are recommended to maintain the specification rating of the connectors (see Compatibility table). The Daniels AF8 (stock no. 314-7584) and MH860 (stock no. 314-8408) are high quality 8 indent crimp tools. AF8 is designed to crimp wire barrel sizes 12-20 (12-26awg wire range). MH860 is designed to crimp wire barrel sizes 16-22 (16-28awg wire range).
100 / 200 Series
Specifications
Brand
Deutsch
Number Of Contacts
2
Plug/Socket
Socket
Mounting Type
Cable Mount
Termination Method
Crimp
Shell Size
1
Current Rating
7.5A
IP Rating
IP67
Contact Gender
Male to Female
Voltage Rating
1.0 kV
Mating Type
Bayonet
Body Orientation
Straight
Series
IMC
Housing Material
Polymer
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
