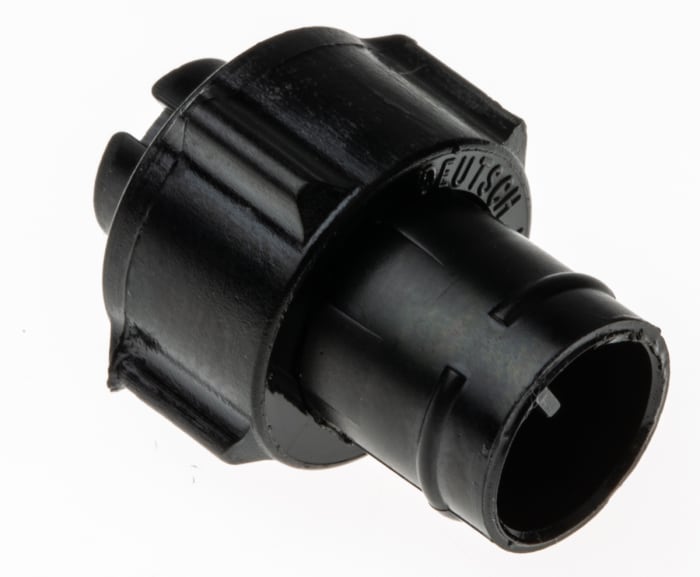

Deutsch Crimp Housing, 4 Contacts, Cable Mount, IP67
500 in stock in the UK
$ 8.499
Each (In a Pack of 250)
Buy in bulk
| quantity | Unit price |
|---|---|
| 250 - 250 | $ 8.499 |
| 500 - 750 | $ 8.075 |
| 1000+ | $ 7.735 |
Live stock
500 in stock in the UK
Product details
Series 100, 2, 3 & 4 Way
Available in cable plug and panel socket standard mating configuration, cable sockets may also be used to make in-line connections to the cable plug. Panel sockets permit flange or jam nut mount into a max. panel thickness of 4mm.,Daniels 8 point crimp tools and turrets are recommended to maintain the specification rating of the connectors (see Compatibility table). The Daniels AF8 (stock no. 314-7584) and MH860 (stock no. 314-8408) are high quality 8 indent crimp tools. AF8 is designed to crimp wire barrel sizes 12-20 (12-26awg wire range). MH860 is designed to crimp wire barrel sizes 16-22 (16-28awg wire range).
100 / 200 Series
Specifications
Brand
Deutsch
Number Of Contacts
4
Plug/Socket
Plug
Mounting Type
Cable Mount
Termination Method
Crimp
Shell Size
1
Current Rating
5.0A
IP Rating
IP67
Contact Gender
Male to Female
Voltage Rating
750.0 V
Mating Type
Bayonet
Body Orientation
Straight
Series
IMC
Housing Material
Polymer
