Deutsch, 0460 Male Crimp Terminal Contact 12AWG 0460-204-12141
Temporarily out of stock
$ 0.522
Each (In a Bag of 10000)
Live stock
Temporarily out of stock
Product details

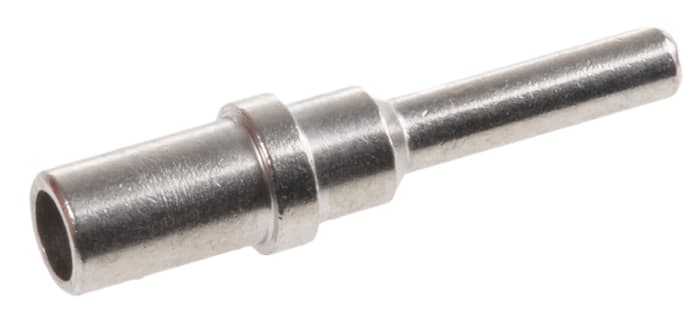

Crimp Contacts for DT and HD Series Sealed Connectors
From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type. The DT series crimp connectors are rugged quality but offer field-proven reliability.
V4 Contacts and Fillers
Specifications
Brand
Deutsch
Gender
Male
For Use With
DT and HD Sealed Connector Housings
Series
0460
Minimum Wire Size mm²
2mm²
Termination Method
Crimp
Maximum Wire Size mm²
3mm²
Contact Plating
Nickel
Minimum Wire Size AWG
14AWG
Contact Material
Copper Alloy
Maximum Wire Size AWG
12AWG
Maximum Contact Resistance
60mV
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+125°C
Country of Origin
MX
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
